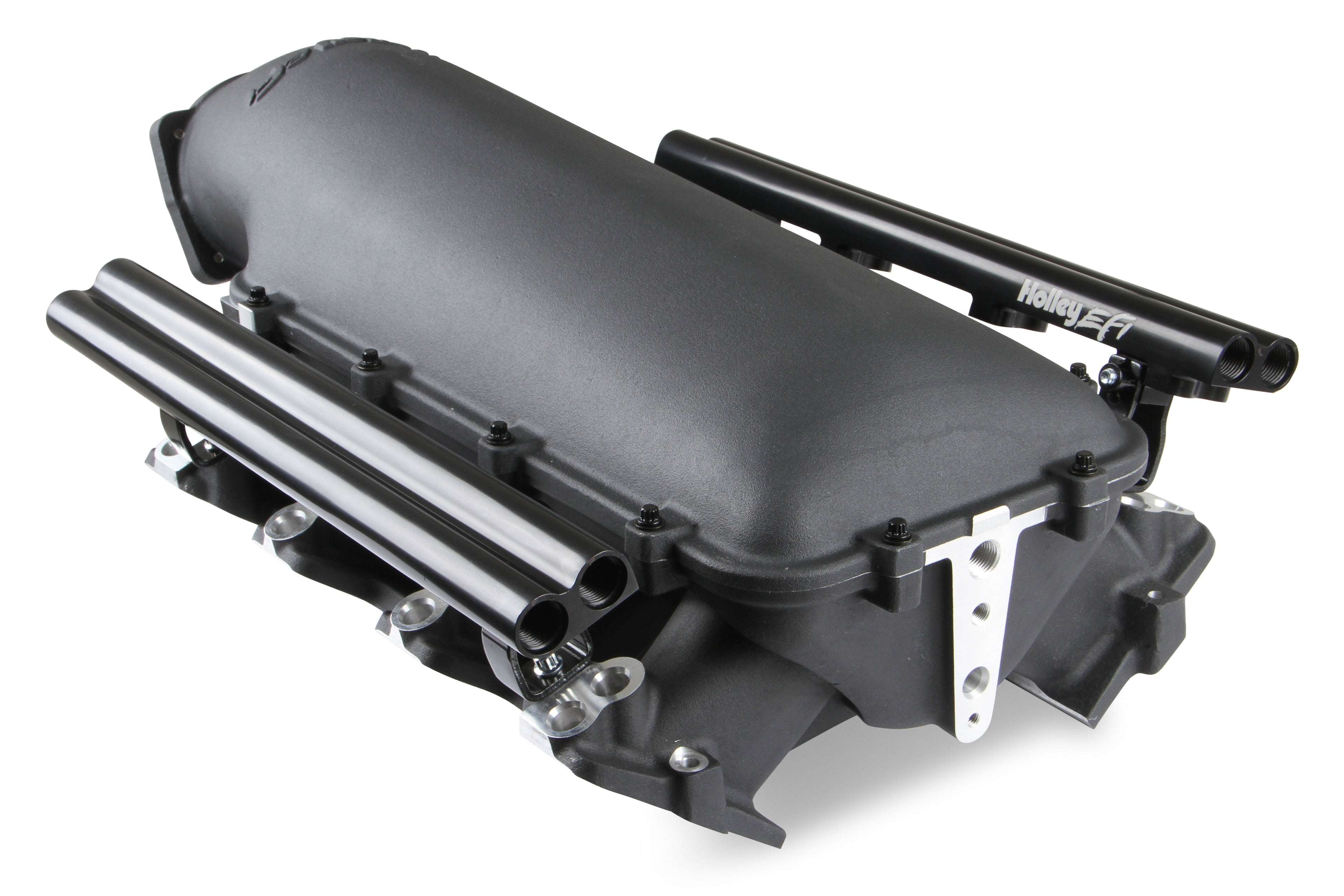

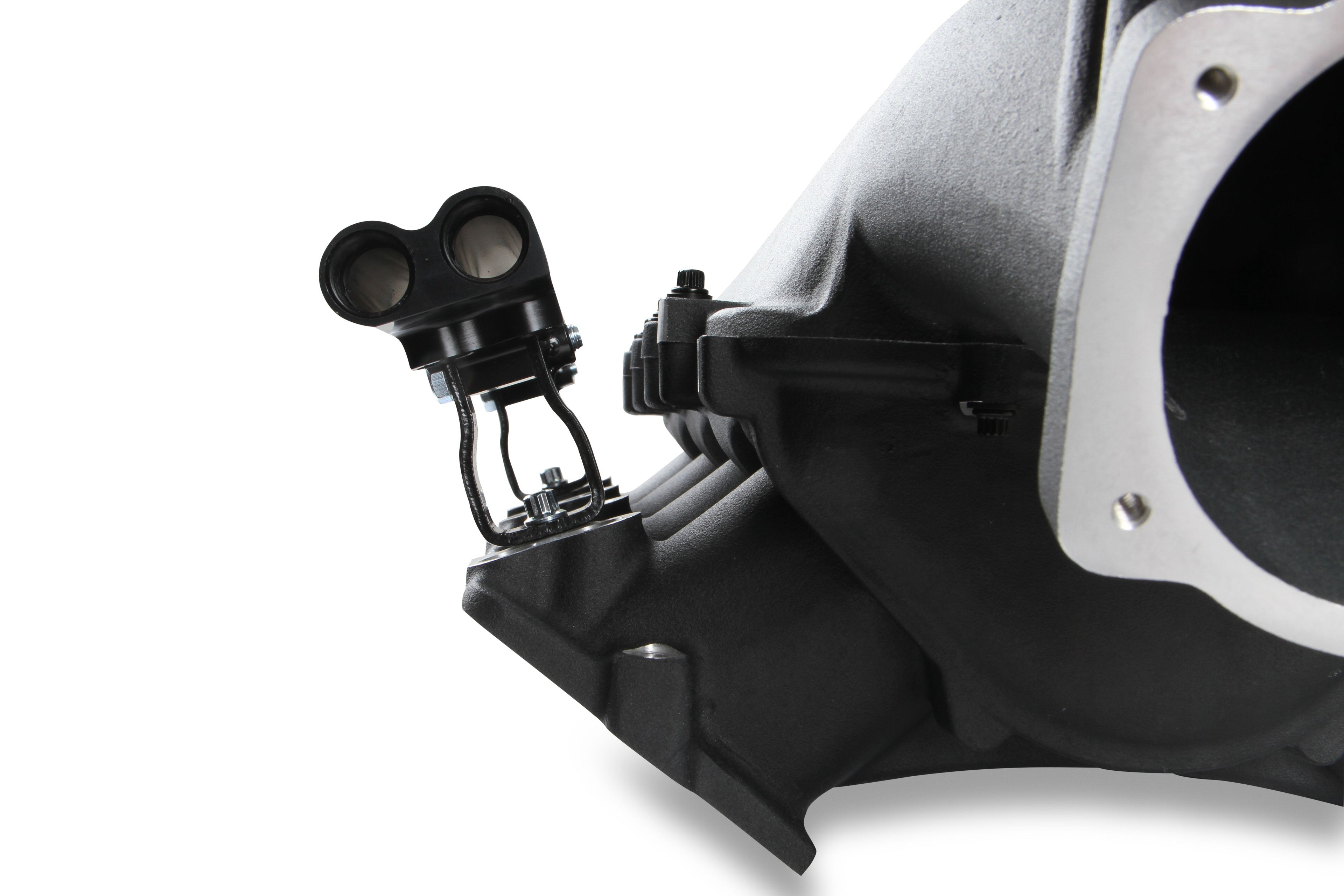

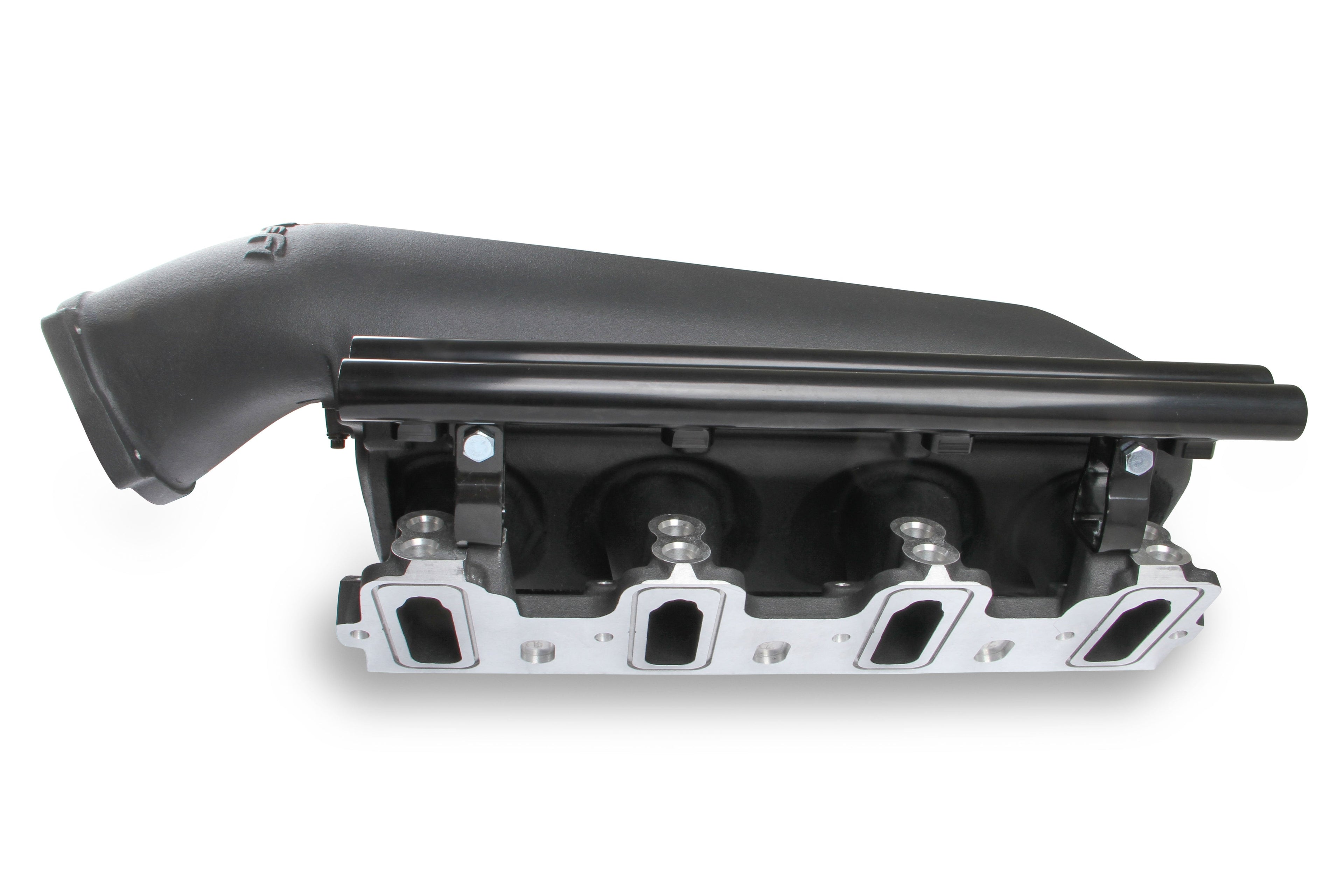

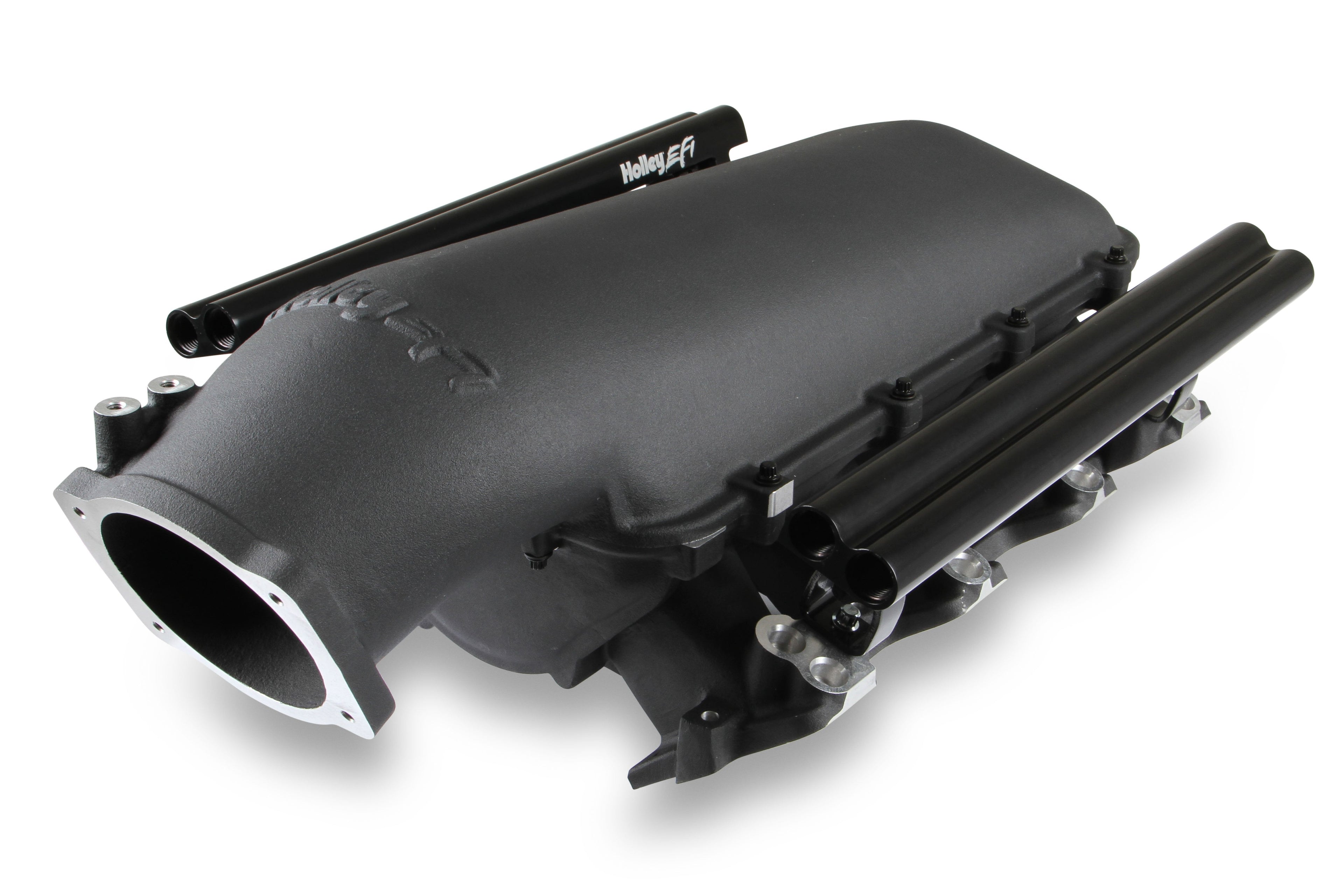

Dual Fuel Injector Lo-Ram EFI Intake Manifold Kit GM LS1/LS2/LS6 - Black Finish

Dual Fuel Injector Lo-Ram EFI Intake Manifold Kit GM LS1/LS2/LS6

Cast Satin Finish

Overview

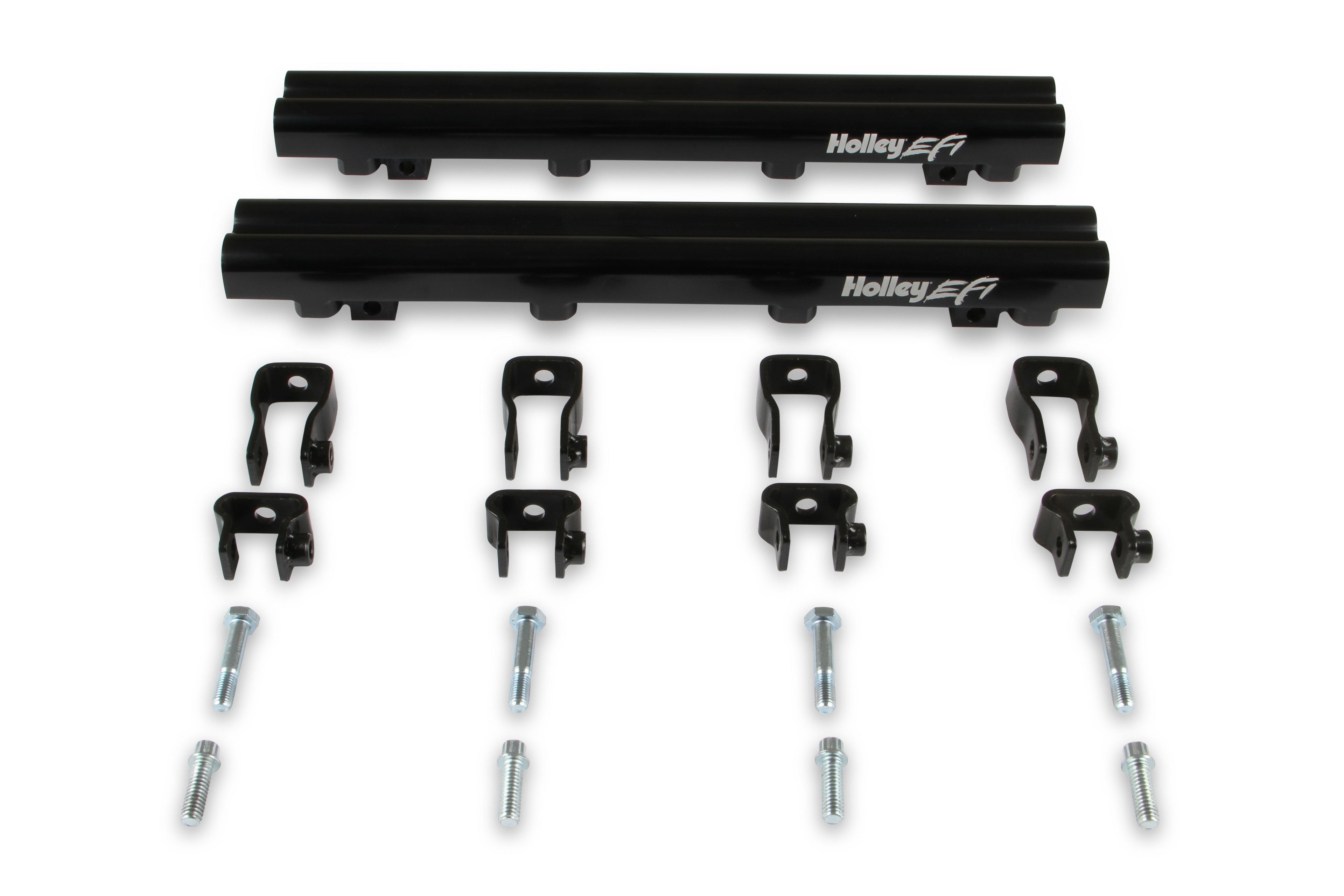

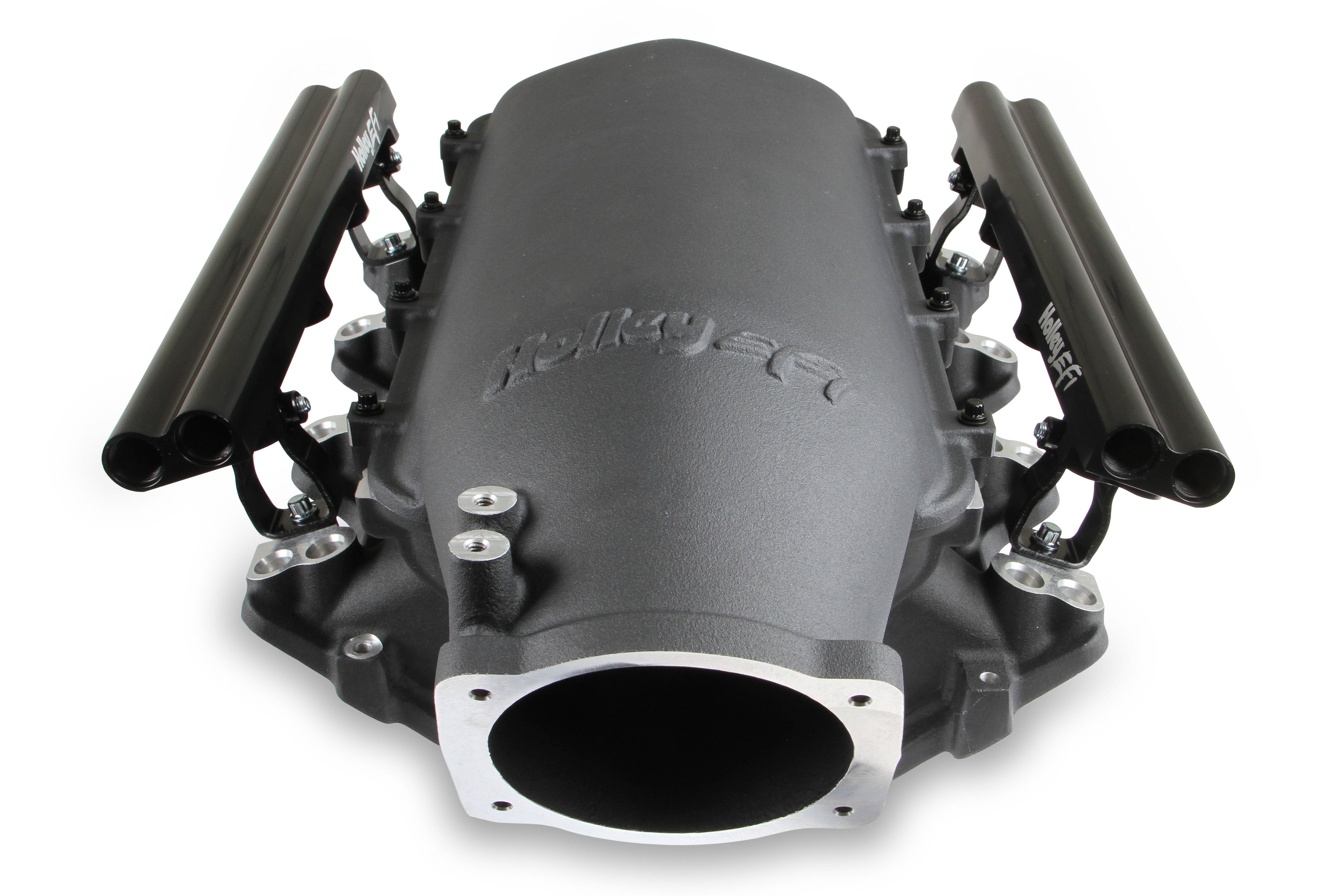

The Holley LS1/2/6 Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads. These intake manifold and rail kits will work with OE (Original Equipment) or aftermarket cylinder heads. The 300-624(satin) 300-624BK(black) intake manifold kit provides two injectors per cylinder for hi-volume fuel demands, flexible fuel supply strategies, and dual-fuel capability. The short runner, low-profile base intake manifold was conceived to package plenum-mounted intercoolers for high-boost turbocharged or supercharged induction systems with a shorter overall height not possible with other existing intake manifolds. The plenum top is configured to be fitted with 105 mm throttle body part number 112-581 or similar models. The dual-fuel injector fuel rail kits come with two sets of brackets. A set for long (usually standard length) fuel injectors and a set for short (such as Pico, or LS7) fuel injectors. Available in satin and black finishes. Holley Lo-Ram intake manifold kits include all the sealing o-rings, plugs, and fasteners required for the installation of the kit.

Features:

• Designed for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads
• Provides best performance for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm, depending on the application
• Dual-injector, separate-passage, high-volume fuel rails with mounting hardware, dual-fuel capable, 8 AN o-ring ports
• Low height to aid the packaging of a plenum mounted air-to-water intercooler in a top-feed configuration or to fit under a stock or mildly modified hood in the front-feed configuration
• Available with both as-cast satin and black power-coat finishes

Details:

• Color: Black
• Construction: Cast
• Engine: GM LS1/LS2/LS6
• Finish: Black
• Flange Style: EFI
• Front Height: 9.07" without Intercooler
• Fuel System Type: EFI
• Injector Quantity: Dual
• Inlet Location: Top
• Manifold Type: Lo-Ram
• Recommended Use: Forced Induction
• RPM Power Band: 3500-8000 RPM
• Warranty: Limited 90 Day
