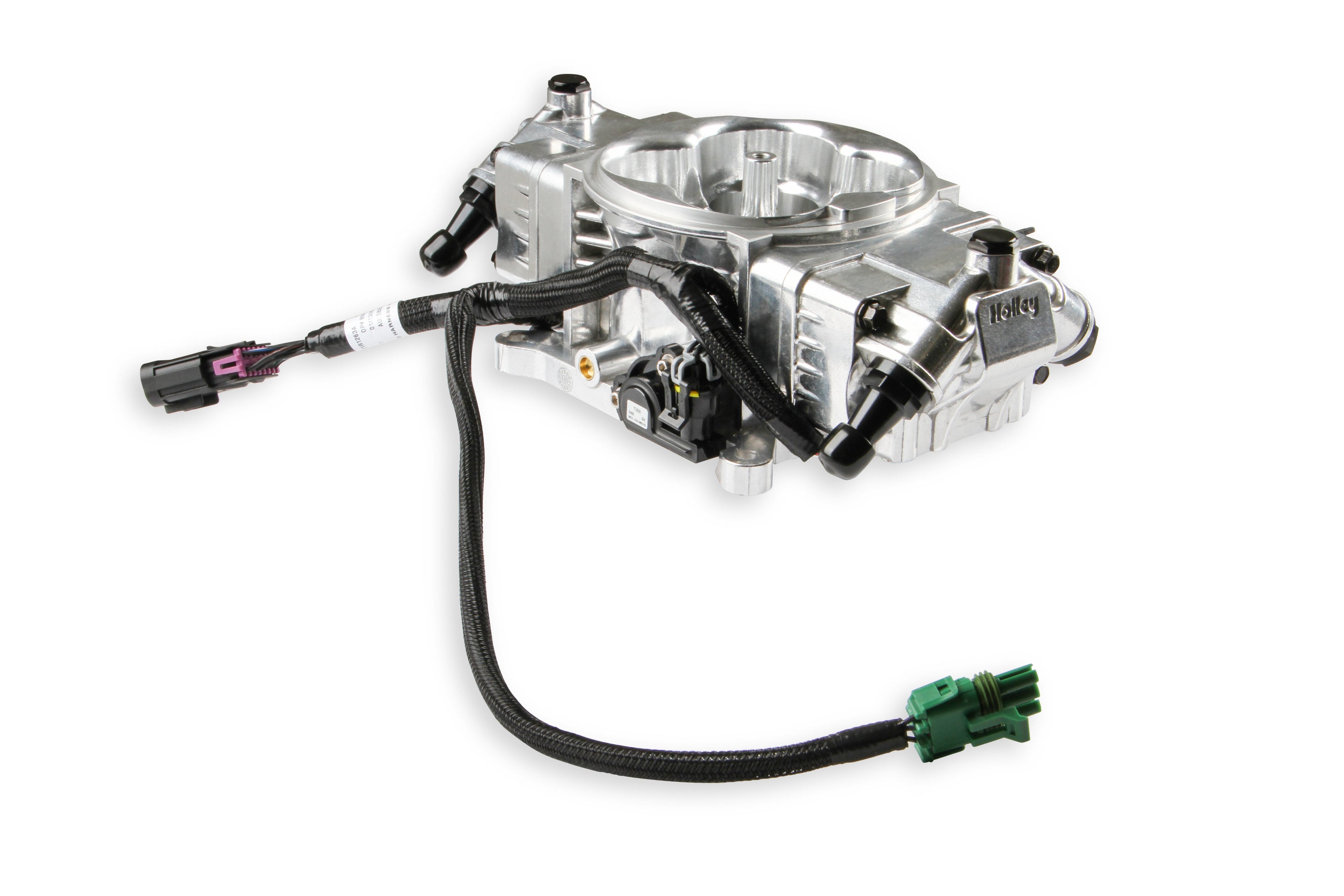

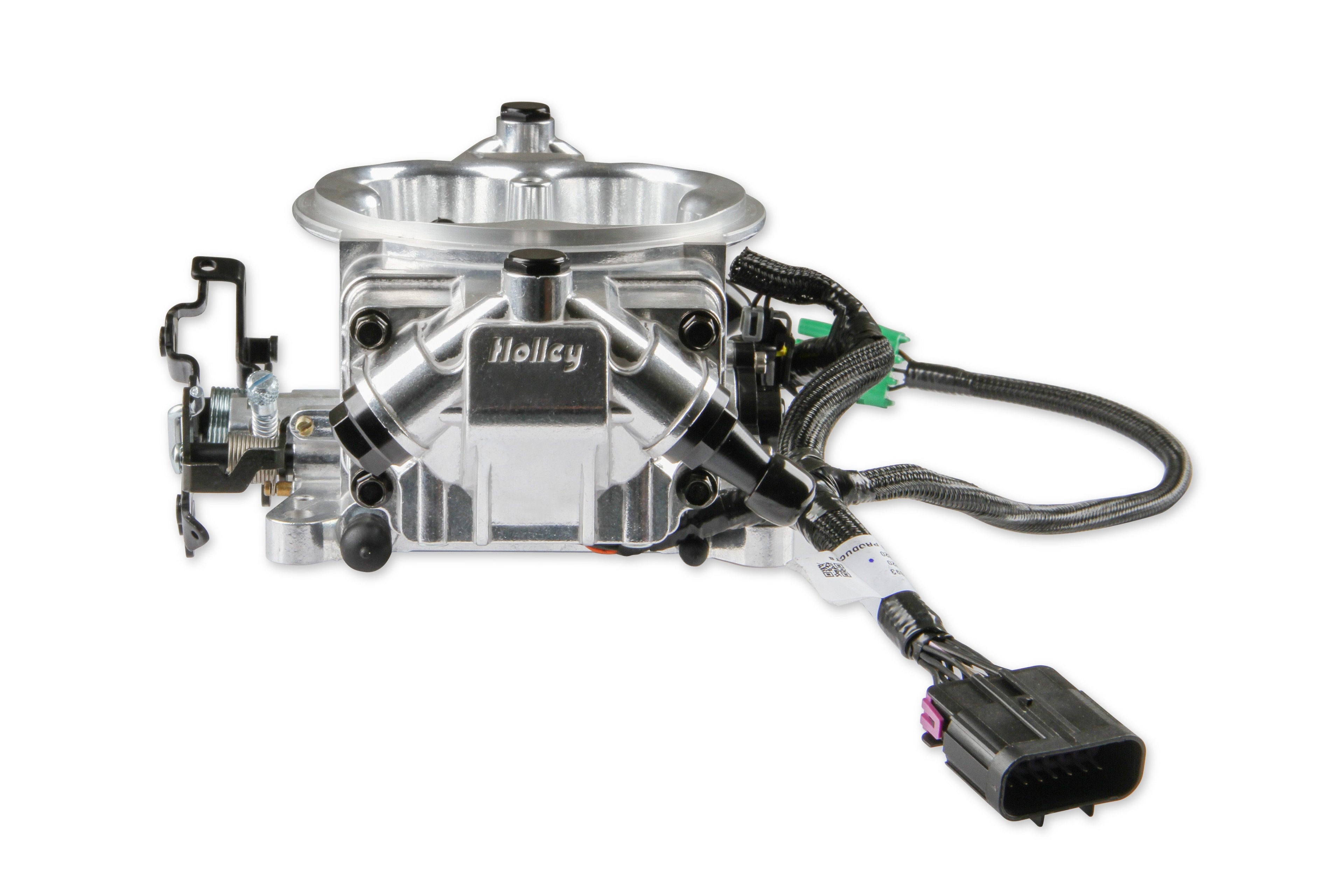

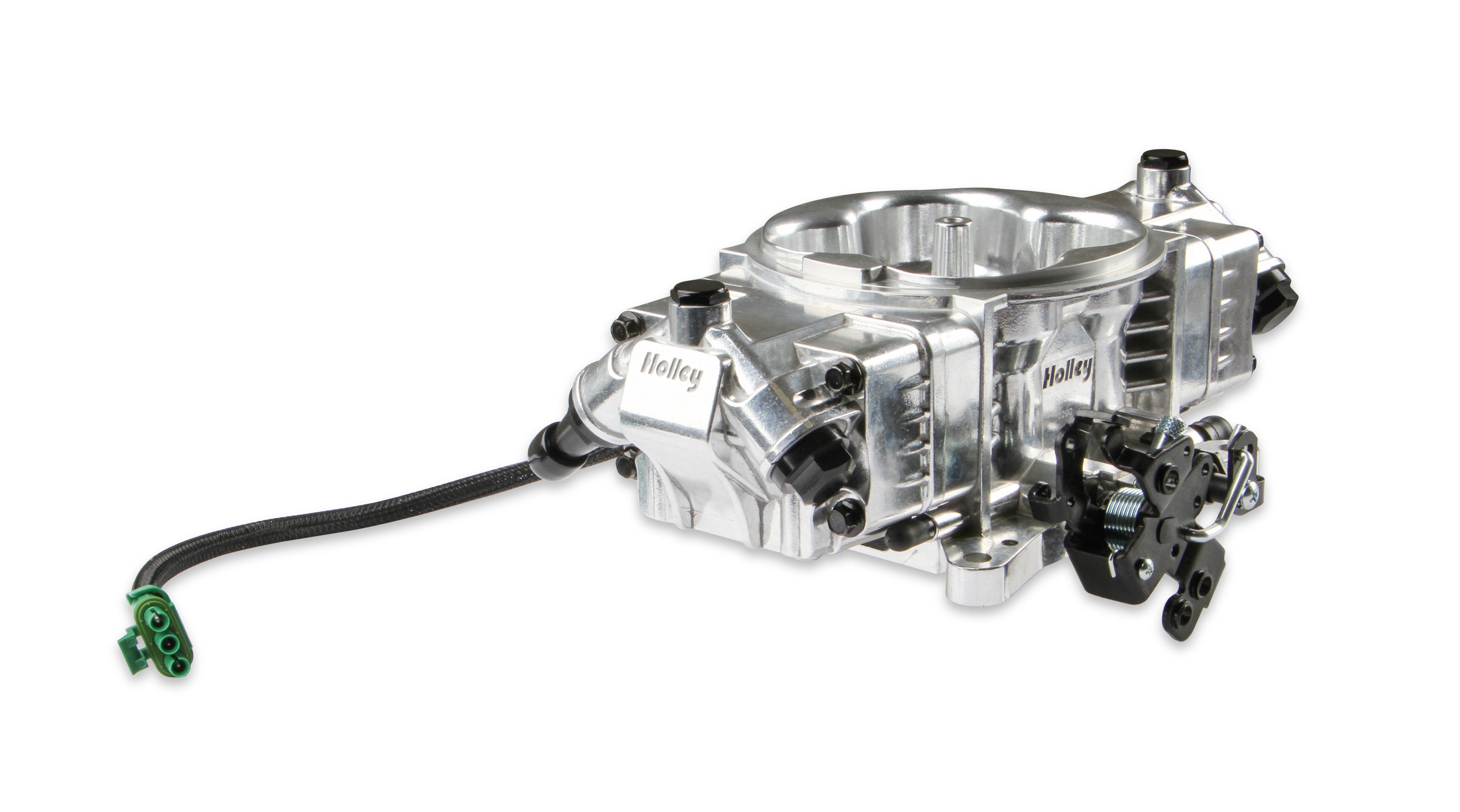

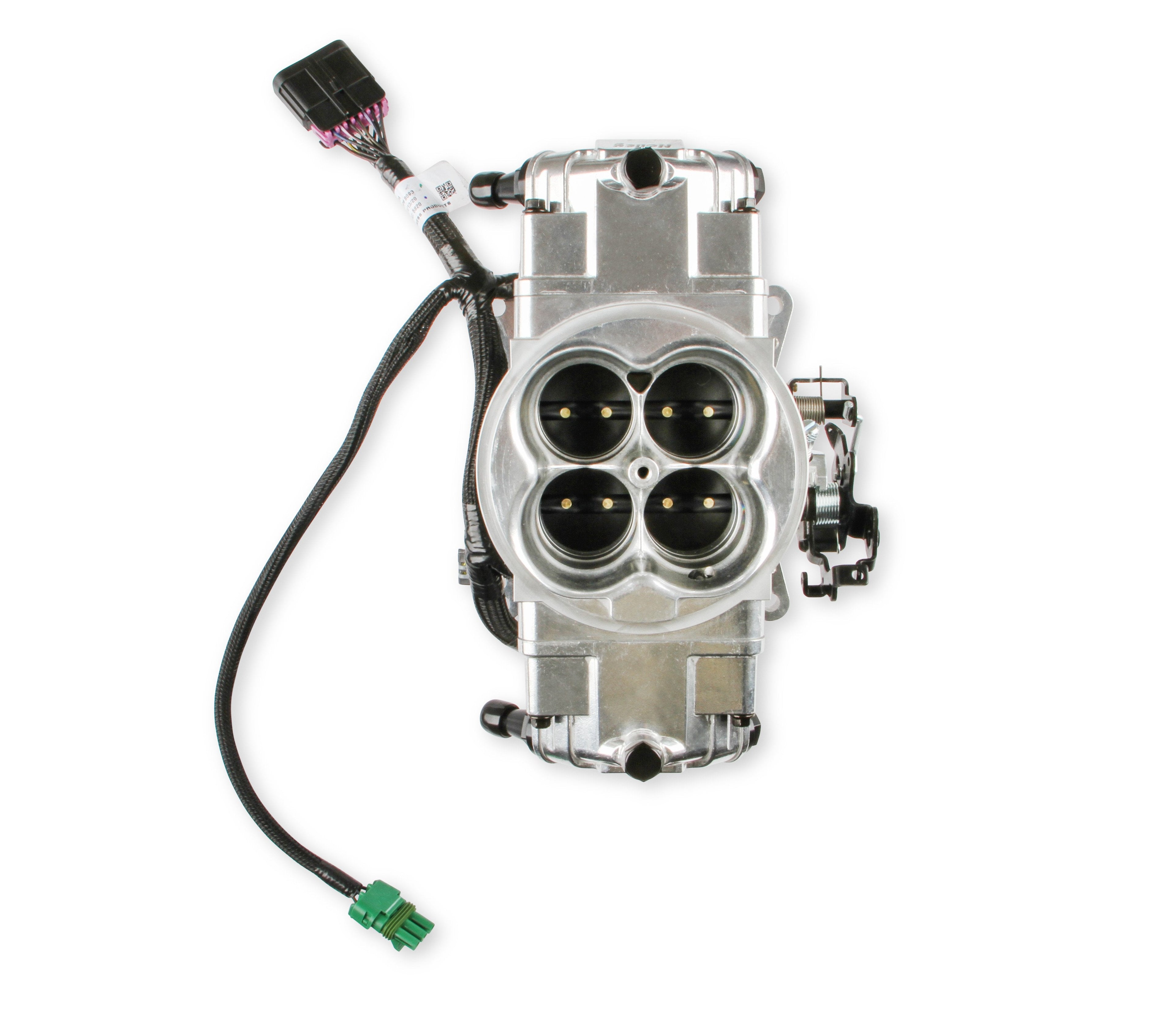

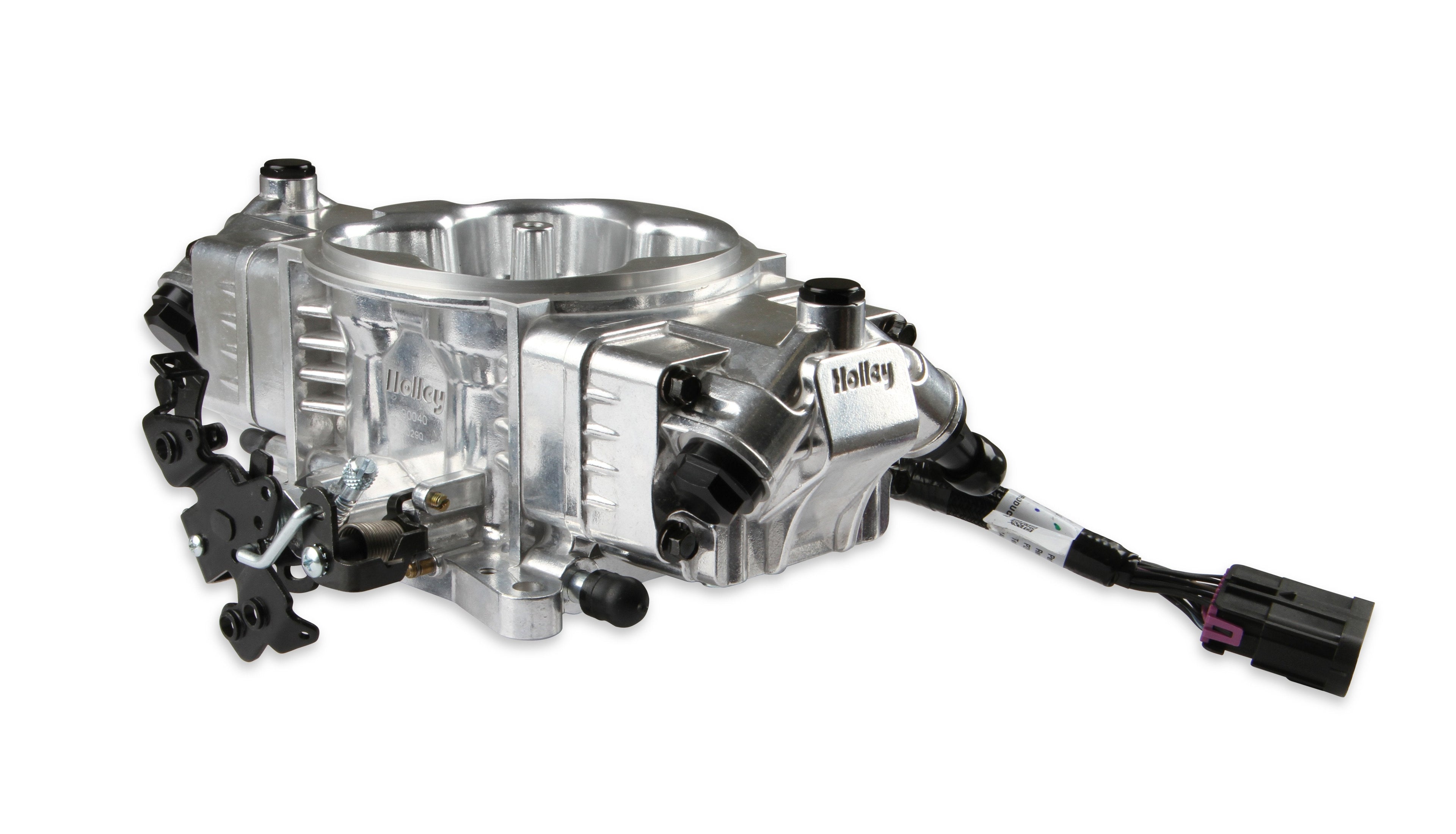

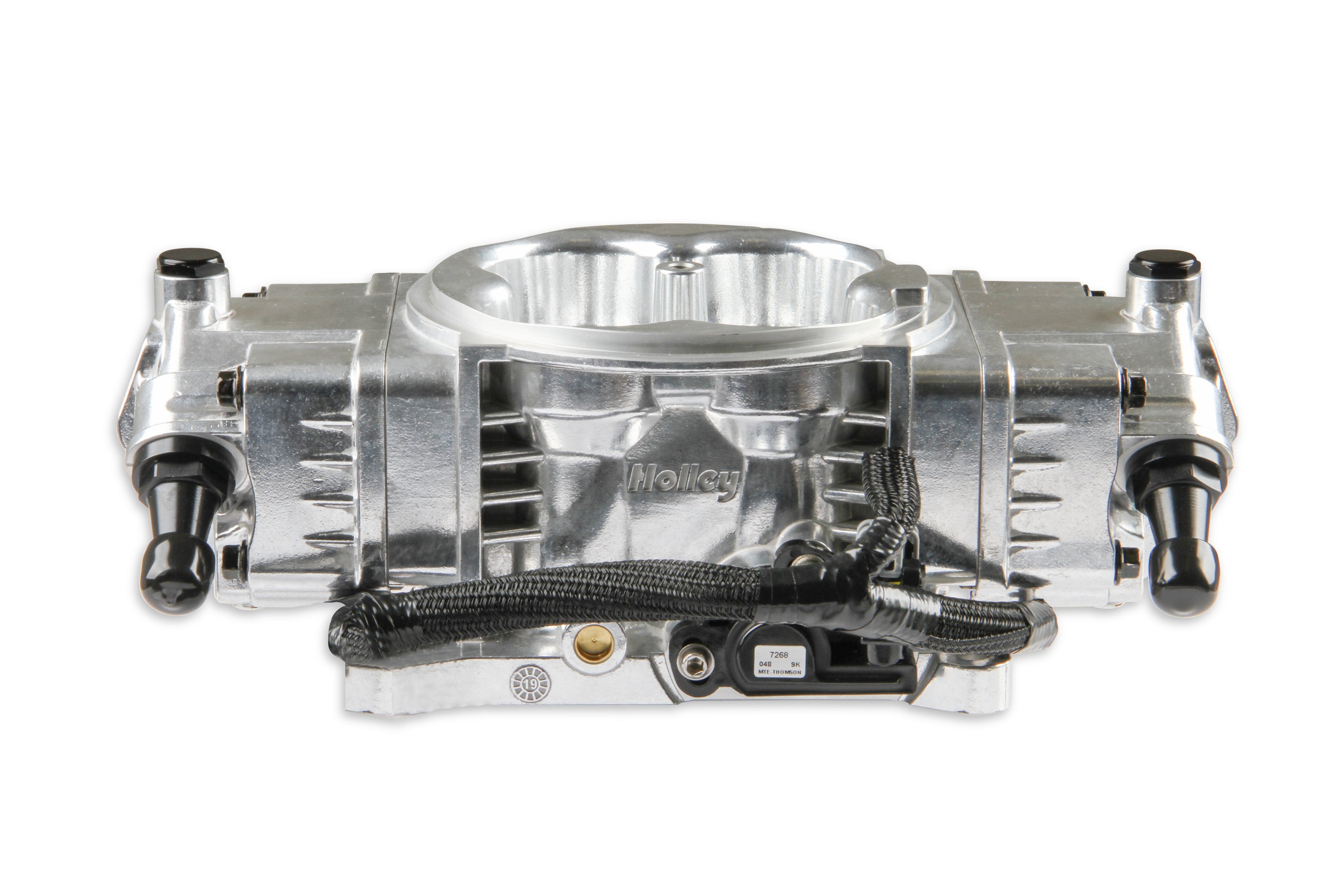

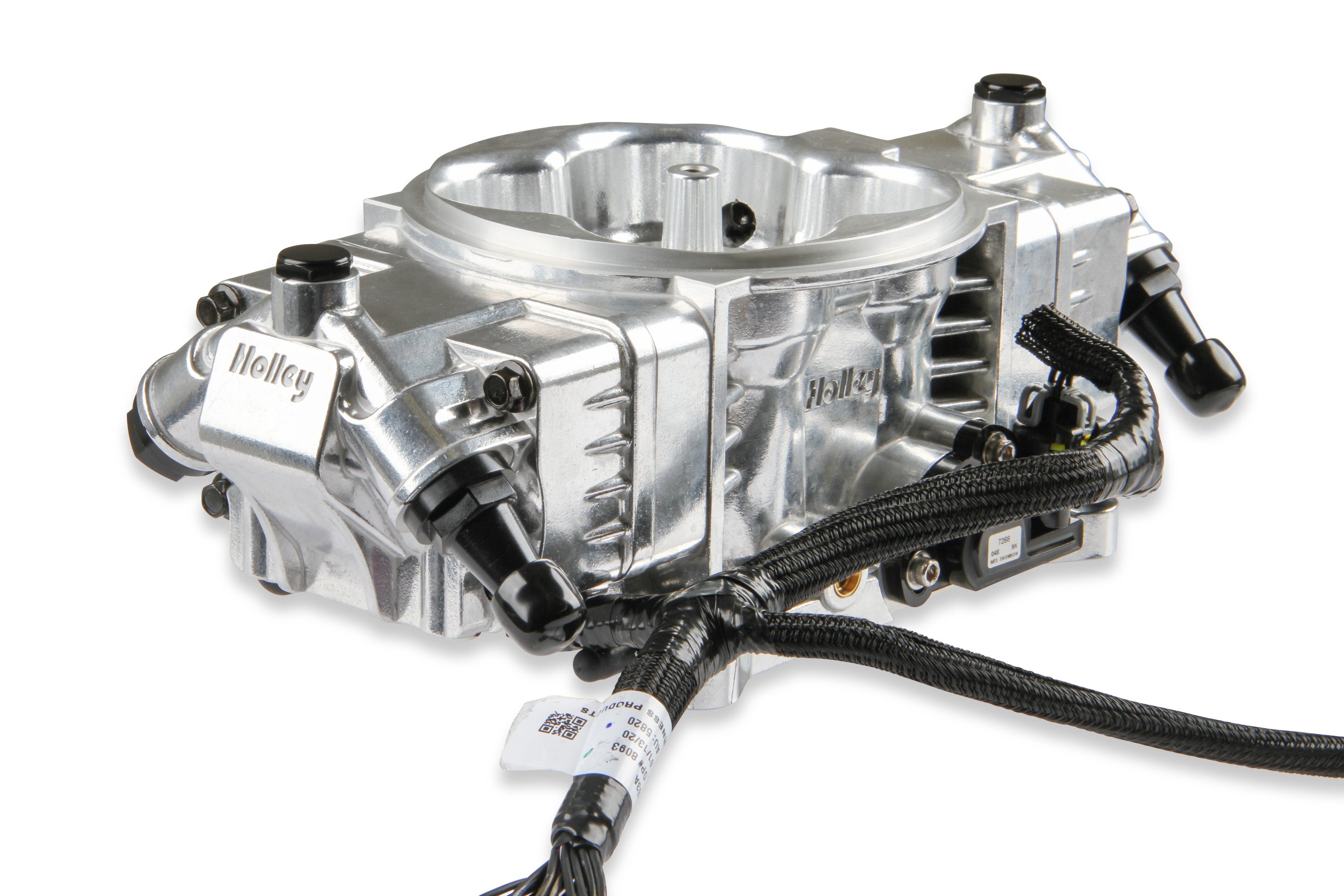

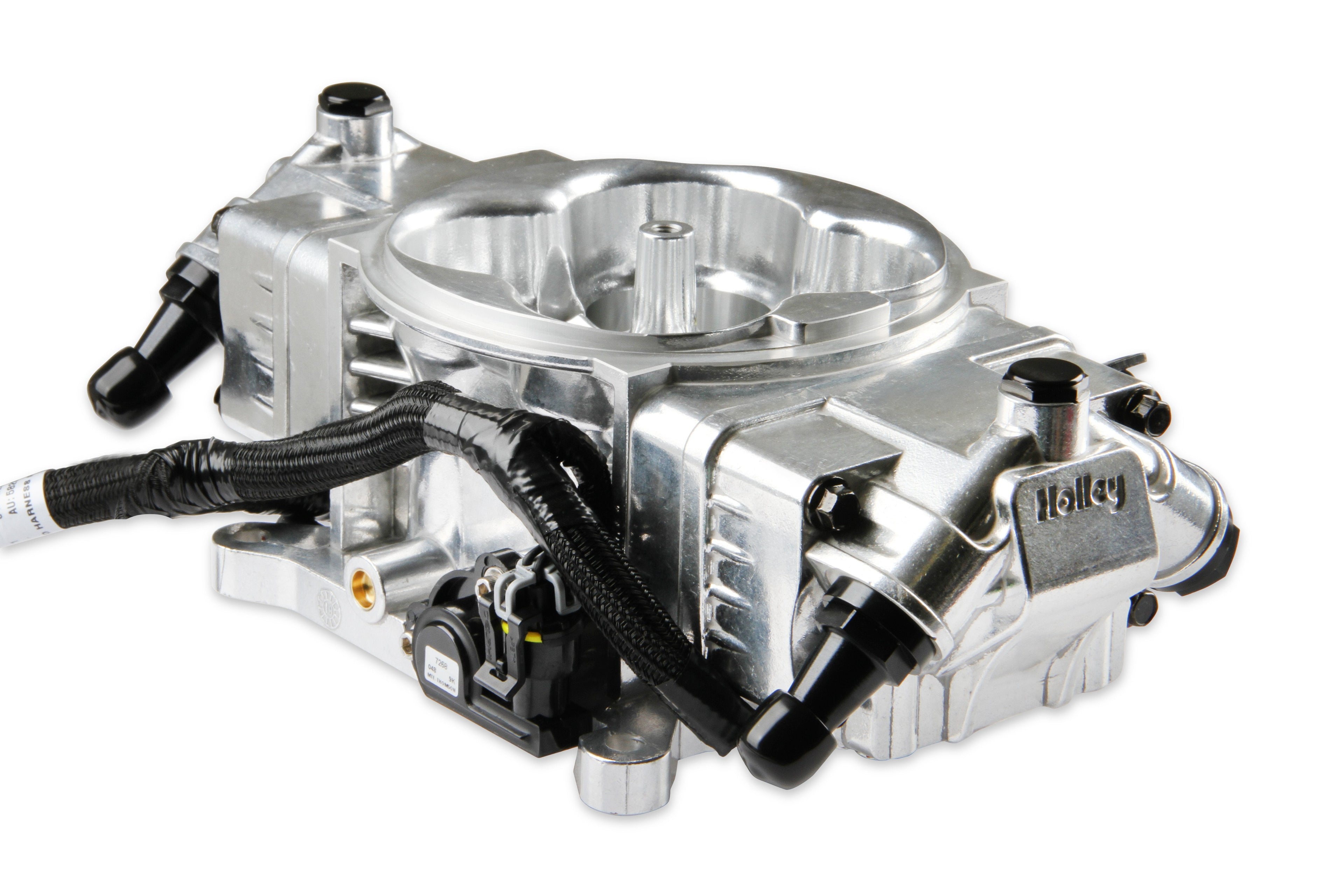

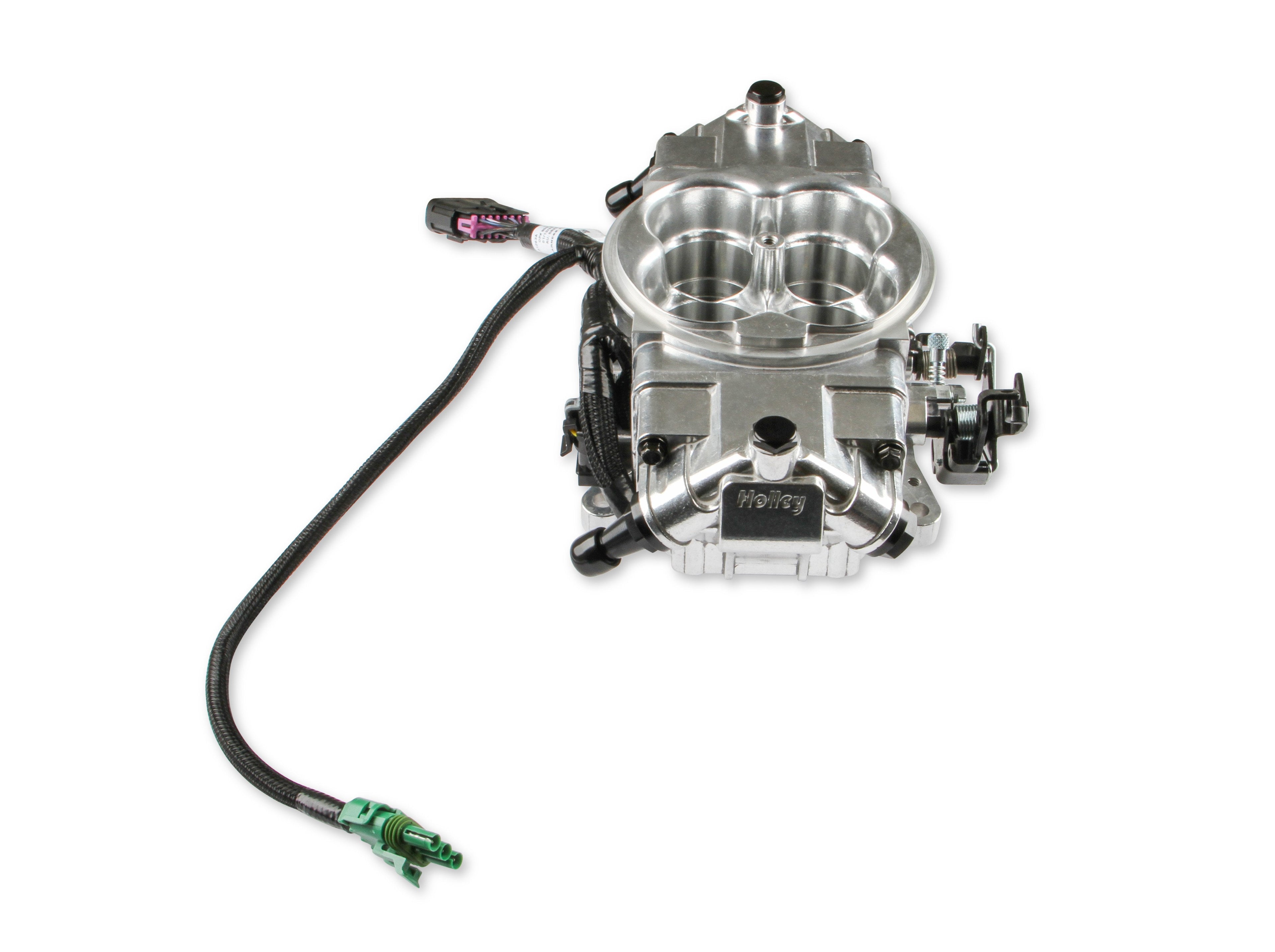

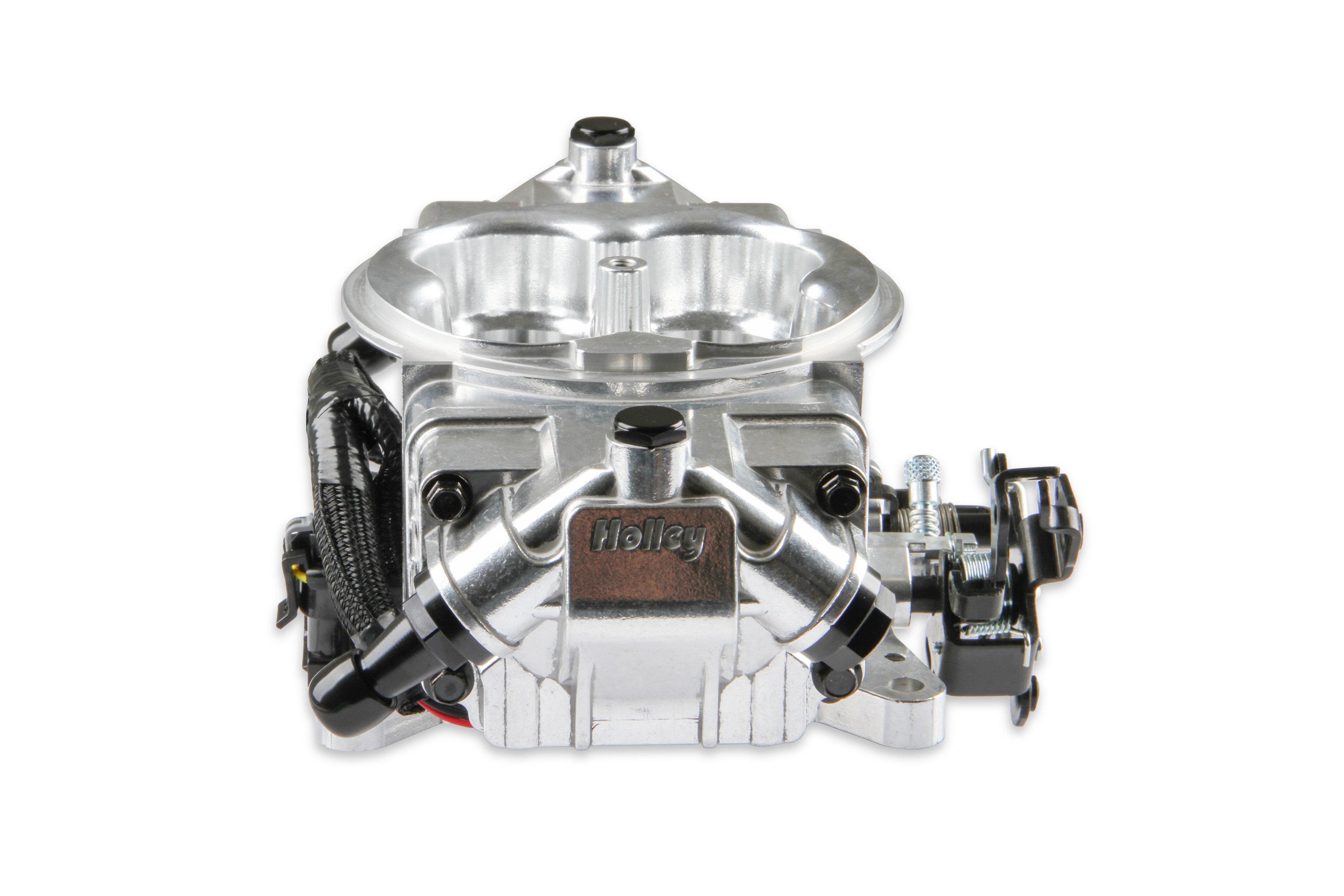

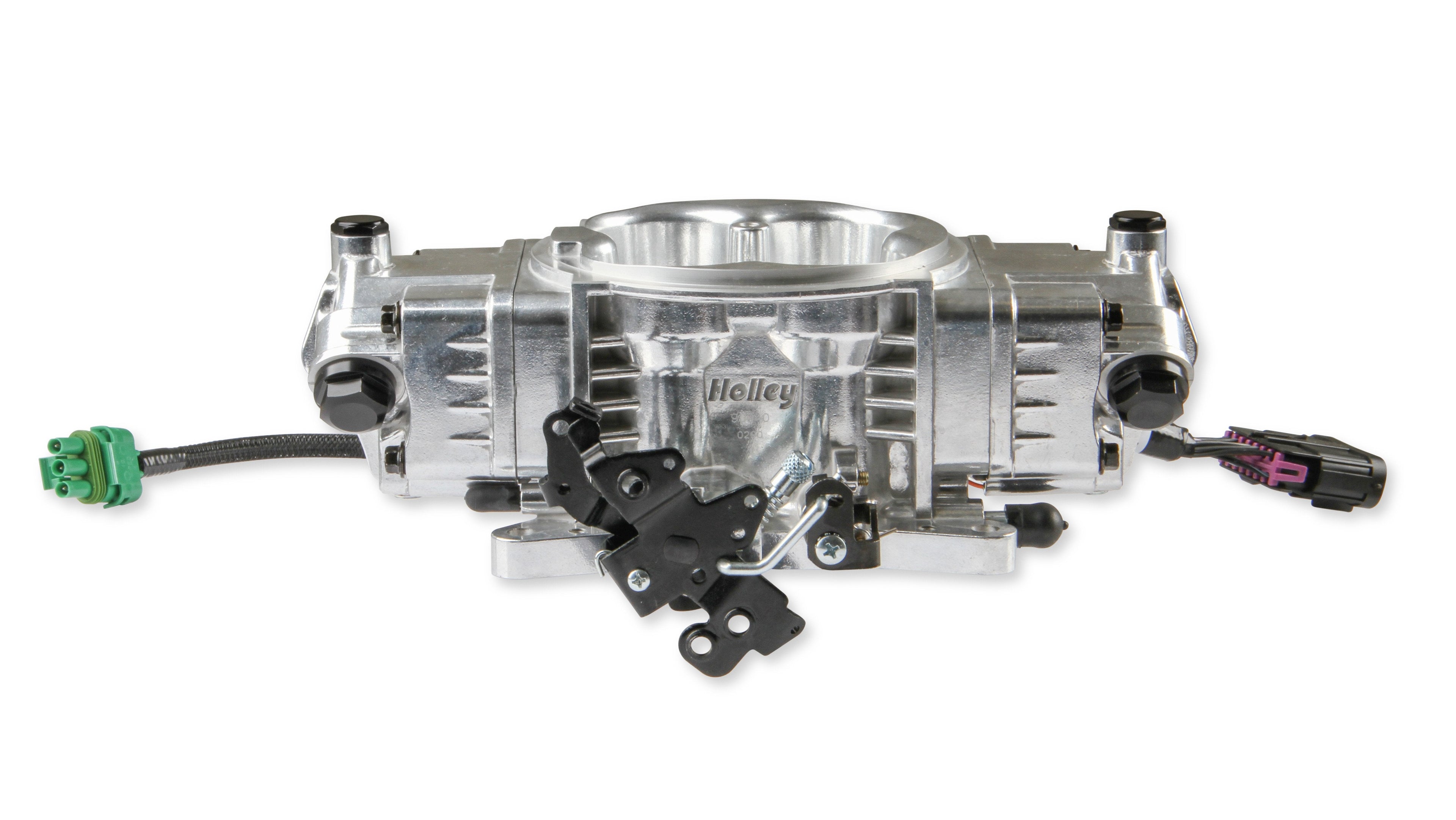

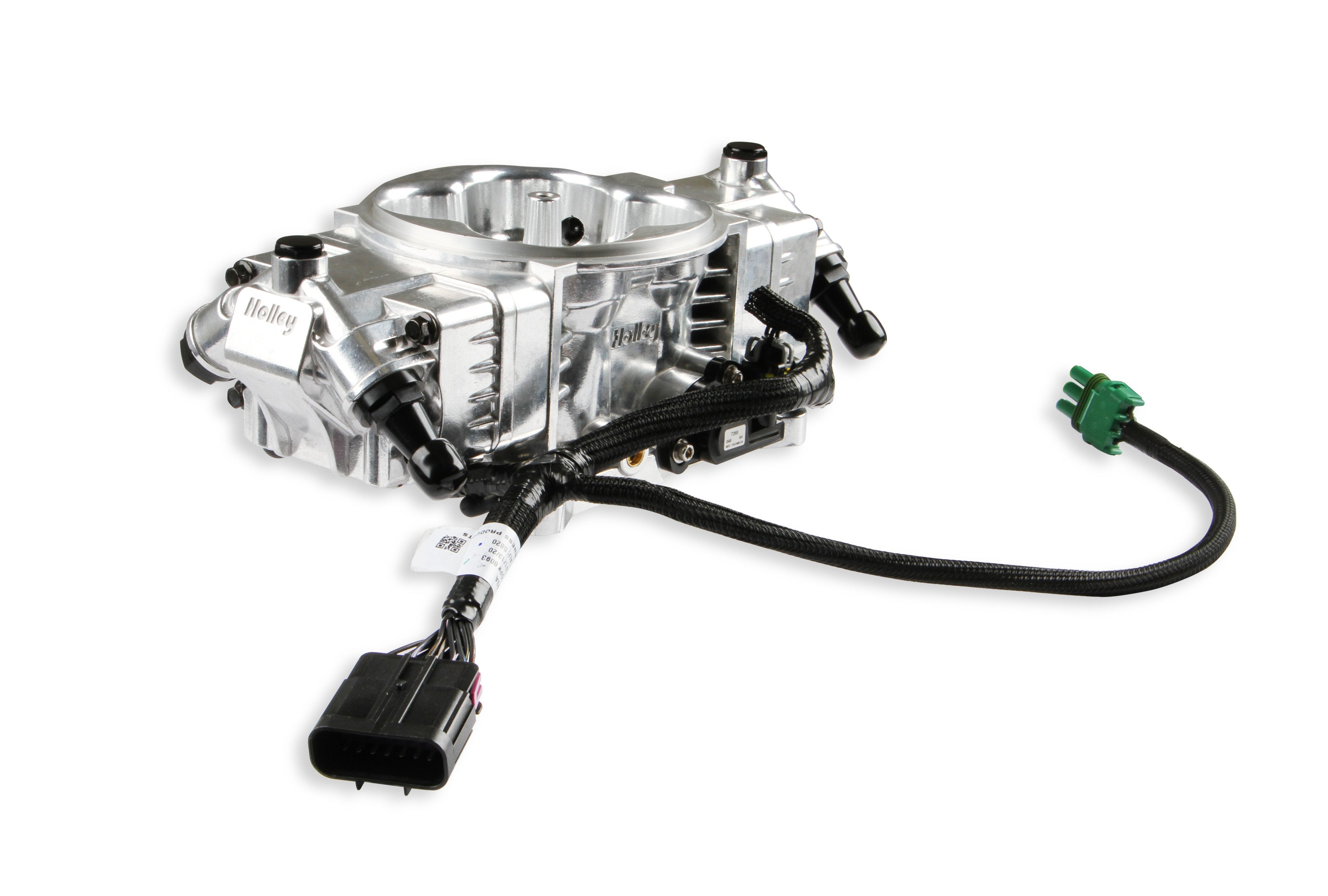

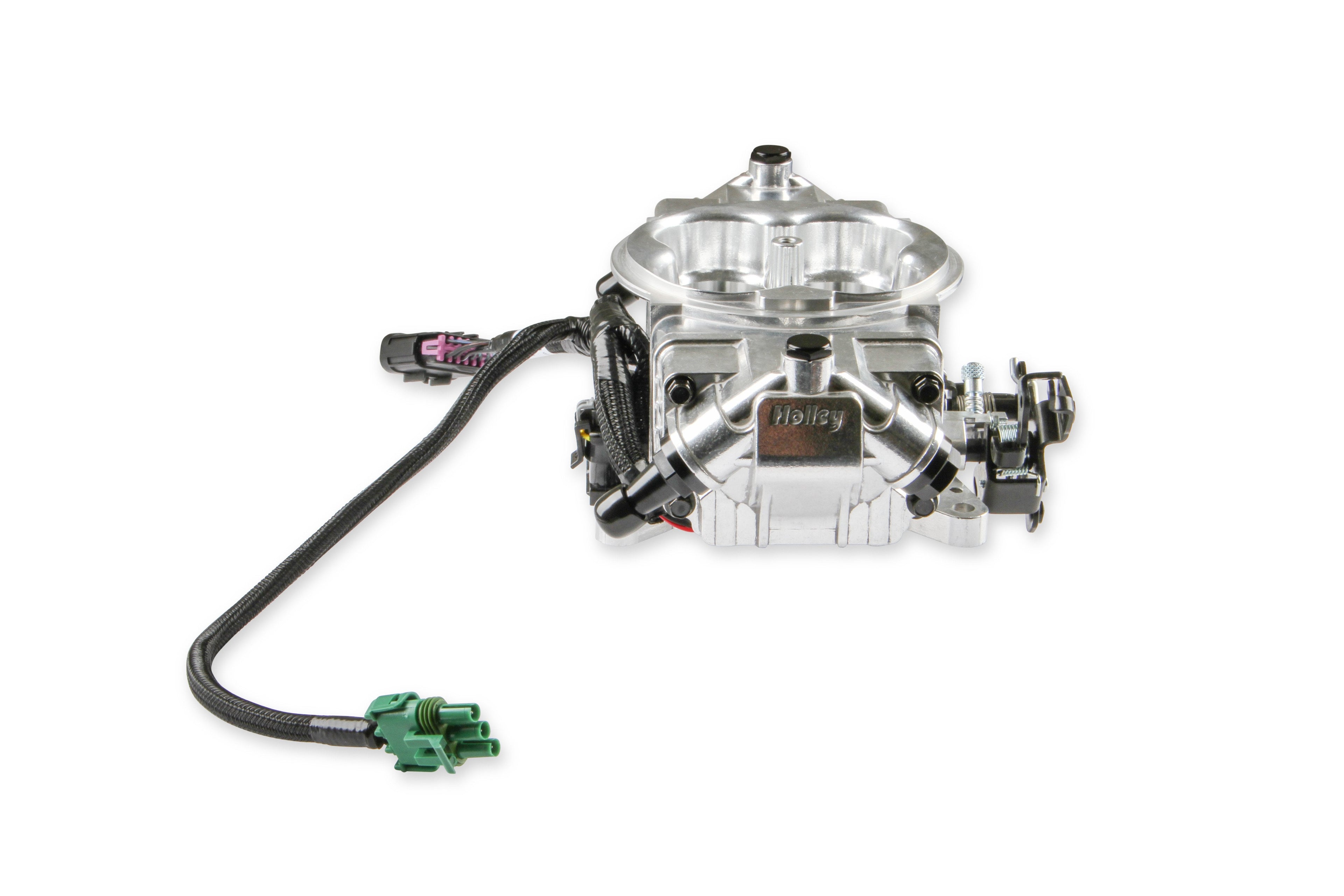

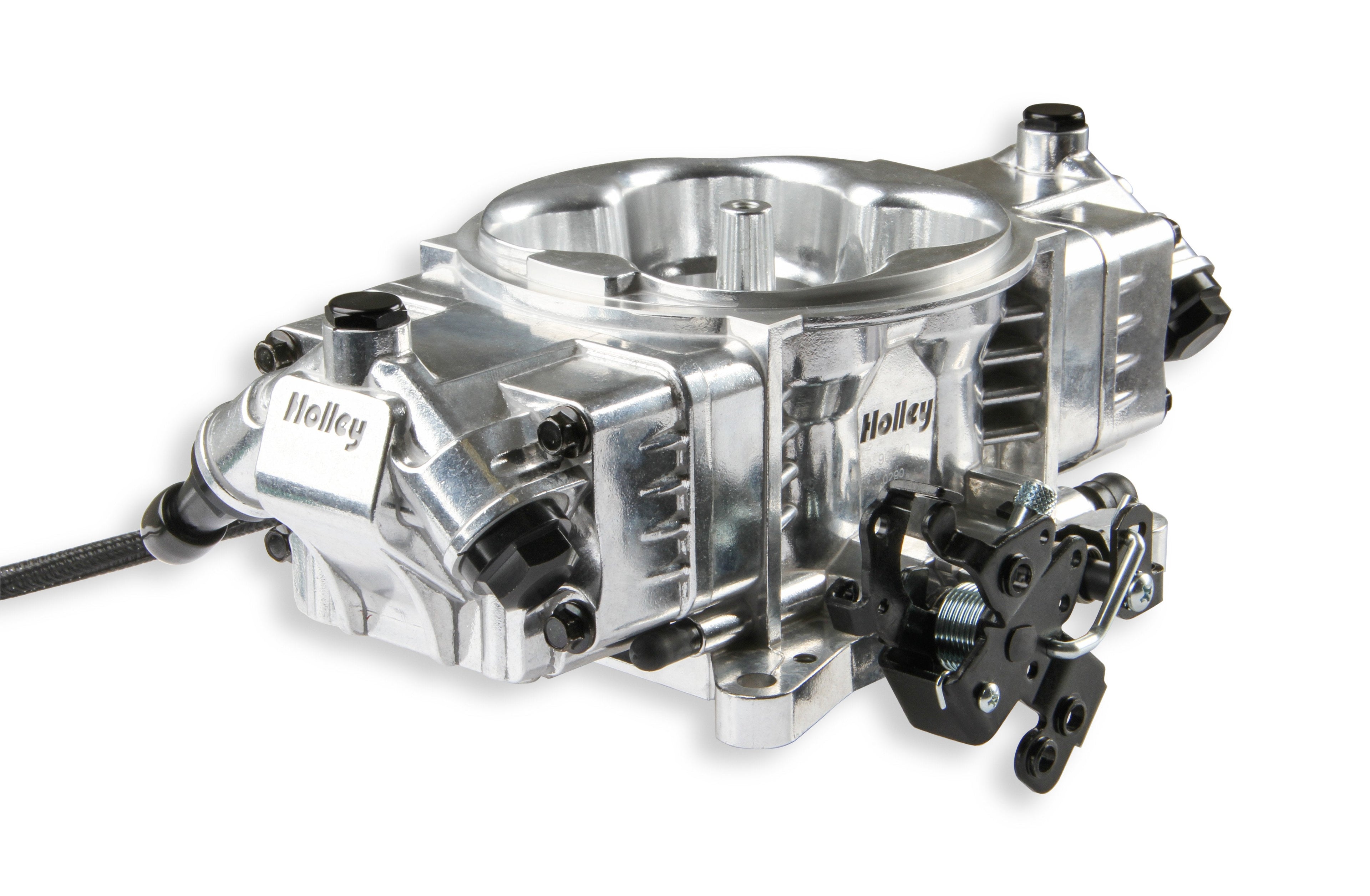

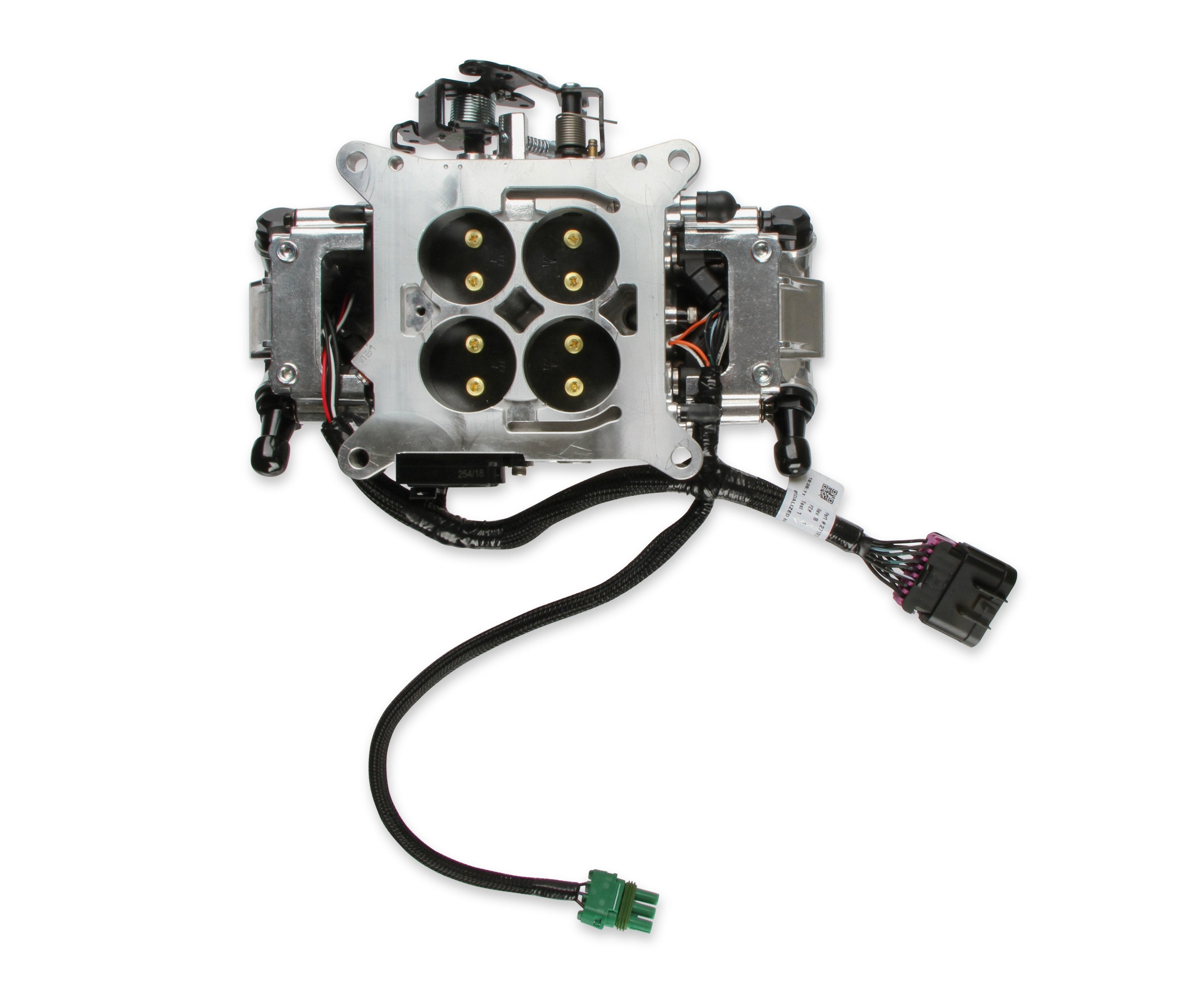

EFI Terminator X Stealth 4150 - Shiny - 4 Injectors - 650 HP

Holley EFI Terminator X Stealth 4150 - Shiny

Replacement Idle Air Control (IAC) Motor for Sniper EFI 85/90/92/102mm Throttle Bodies and 90/95/105mm Holley EFI Throttle Bodies

Overview
Trust Holley to offer replacement electronic sensors that meet and/or exceed OEM specifications for performance! This Idle Air Control Motor will serve as a direct replacement for the following applications(All models unless specified otherwise): - Cadillac Escalade 2002 - Chevrolet Avalanche 1500 2002 - Chevrolet Camaro 2000-2002 - Chevrolet Silverado 1500 1999-2002 - Chevrolet Silverado 2500 1999-2002 - Chevrolet Silverado 3500 2001-2002 - Chevrolet Suburban 1500 2000-2002 - Chevrolet Suburban 2500 2000-2002 - Chevrolet Tahoe 2000-2002 - GMC Sierra 1500 1999-2002 - GMC Sierra 2500 1999-2002 - GMC Sierra 3500 2001-2002 - GMC Yukon 2000-2002 - GMC Yukon XL 1500 2000-2002 - GMC Yukon XL 2500 2000-2002 - Pontiac Firebird 2000-2002 - Pontiac GTO 2004

This Idle Air Control (IAC) Motor is designed to work exclusively with the following Throttle Bodies: Sniper EFI: 860001-1, 860002-1, 860004-1, 860005-1, 860007-1, and 860008-1 Holley EFI: 112-581, 112-583, 112-585, and 112-589 This Idle Air Control (IAC) Motor is a direct replacement for a GM OE Part #17113598

Features:

• Bolt on 4150 Flange Carburetor Replacement
• Supports up to 650HP with Four 100lb/hr Injectors
• Terminator X Max Stealth 4150 kits provide transmission control for Pre-2009 GM 4L60E/4L80E Transmissions (Part numbers 550-1011, 550-1012,550-1013)
• Internal 1bar MAP sensor, built into the Terminator X ECU.

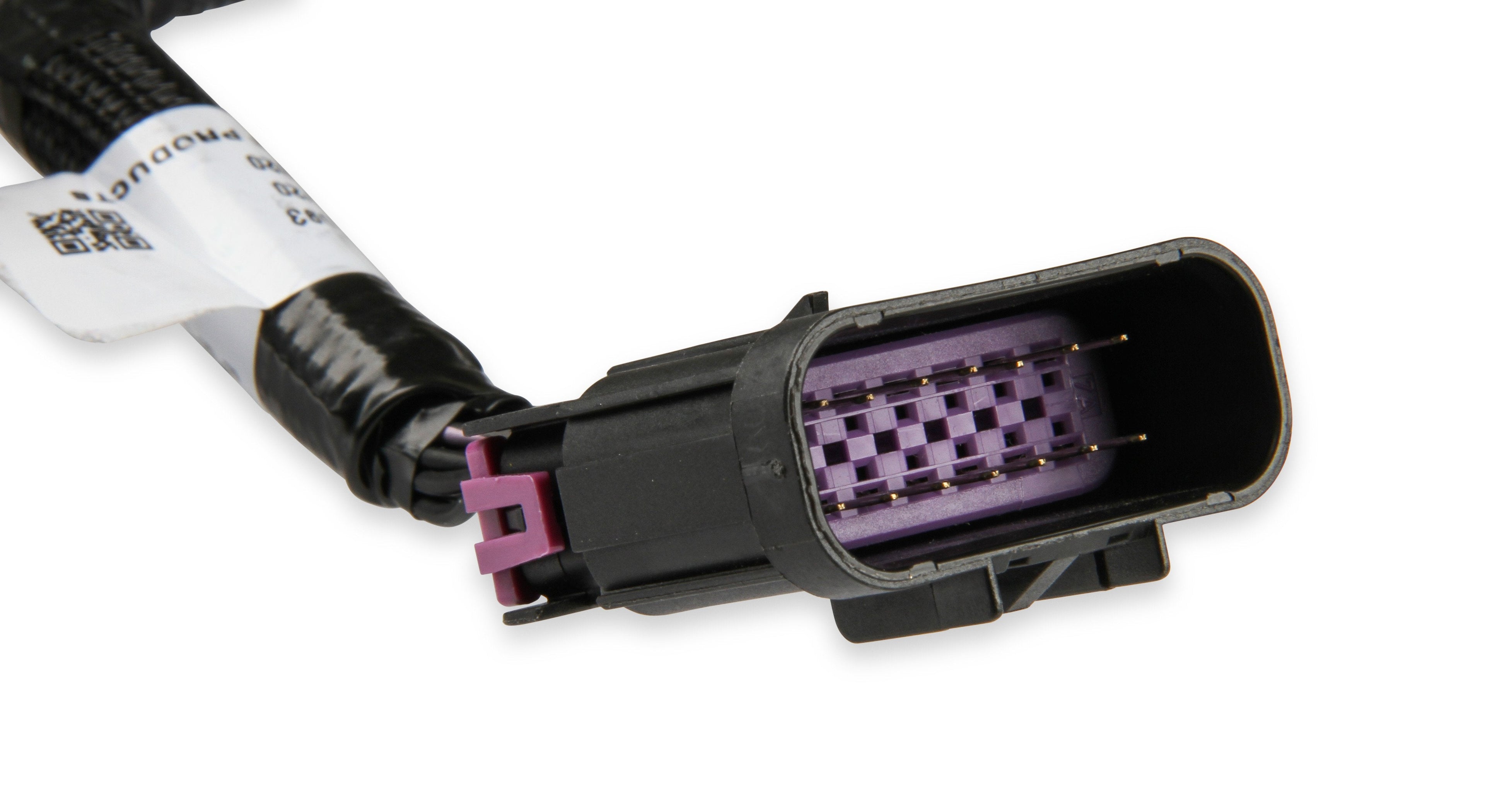

• All of the wiring exits below the rear fuel injector cover, for a completely stealth installation
• Timed spark port for vacuum advanced distributors located under the front fuel bowl, for easy access to the distributor
• Air entry is machined to fit most stock style air cleaners with air cleaner locator provisions
• External fuel pressure regulator required, set to a base pressure of 58.5 PSI, such as Holley part # 12-886
• Integrated ignition timing control improves idle stability, fuel economy, and wide open throttle performance

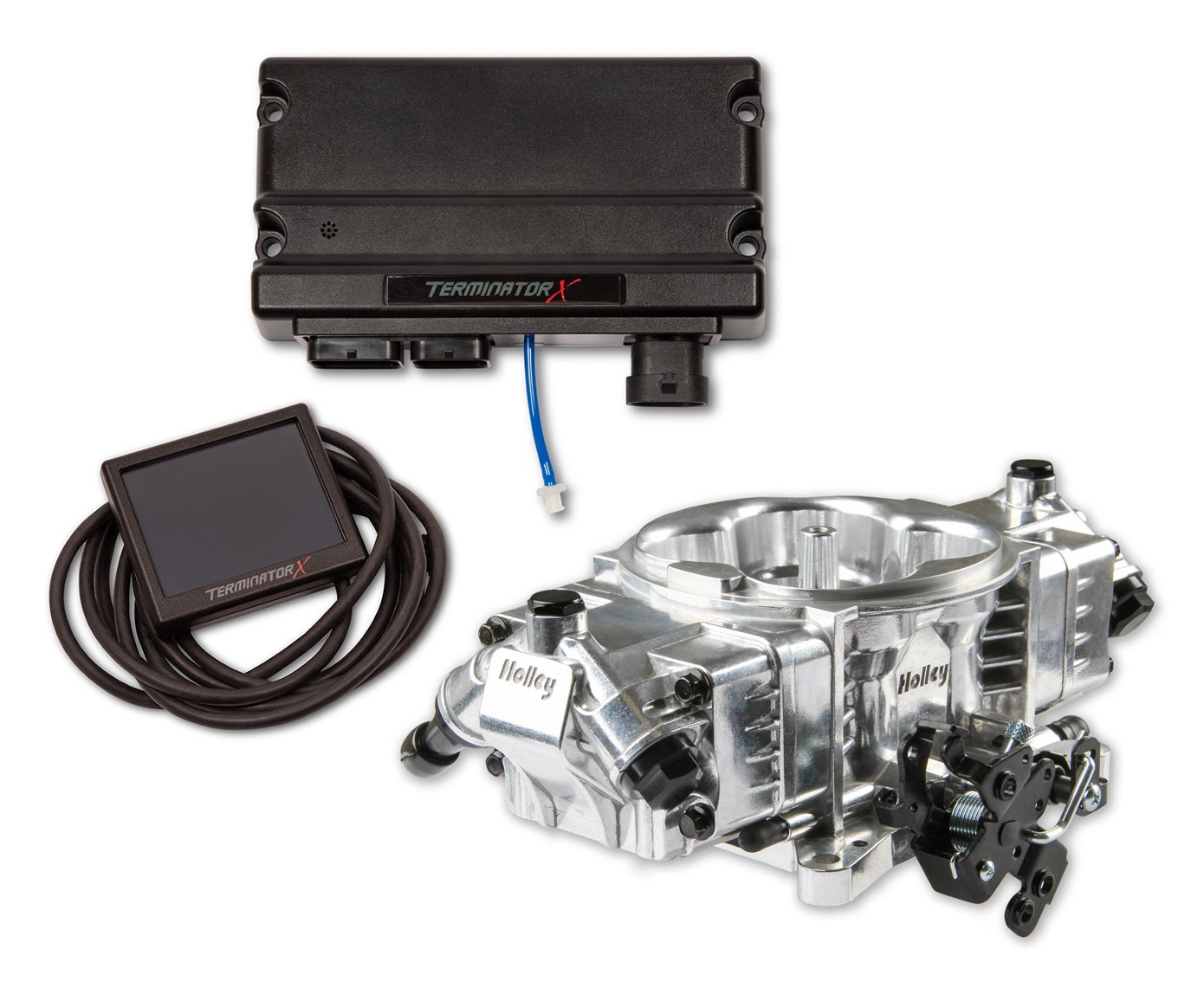

• High Resolution Full Color Touchscreen for Initial Setup, Tuning, and Gauge Displays
• Simple Calibration Wizard (answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required
• The included Genuine Bosch LSU 4.9 Wideband Oxygen Sensor provides real-time Fuel Map Learn
• OEM Style TPS/IAC for years of dependable service
• Available in 3 finishes: Shiny, Black, and Gold

Details:

• Color: Shiny
• Ignition Type: Universal
• Injector Size: 100 lb/hr @ 58.5 PSI
• Max Horsepower Rating: 650 Naturally Aspirated
