Fuel Cell EFI Pump Module Assembly-Returnless Style 12-Bolt Flange 340 LPH E85 Compatible Drop-In EFI

Sniper Fuel Cell EFI Pump Module Assembly-Returnless Style

12-Bolt Flange 340 LPH E85 Compatible Drop-In EFI

Overview

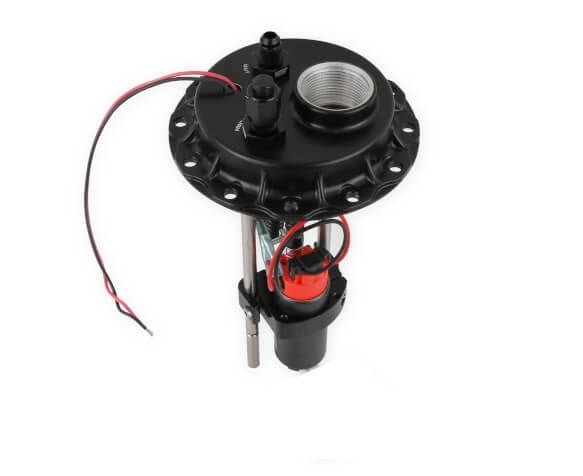

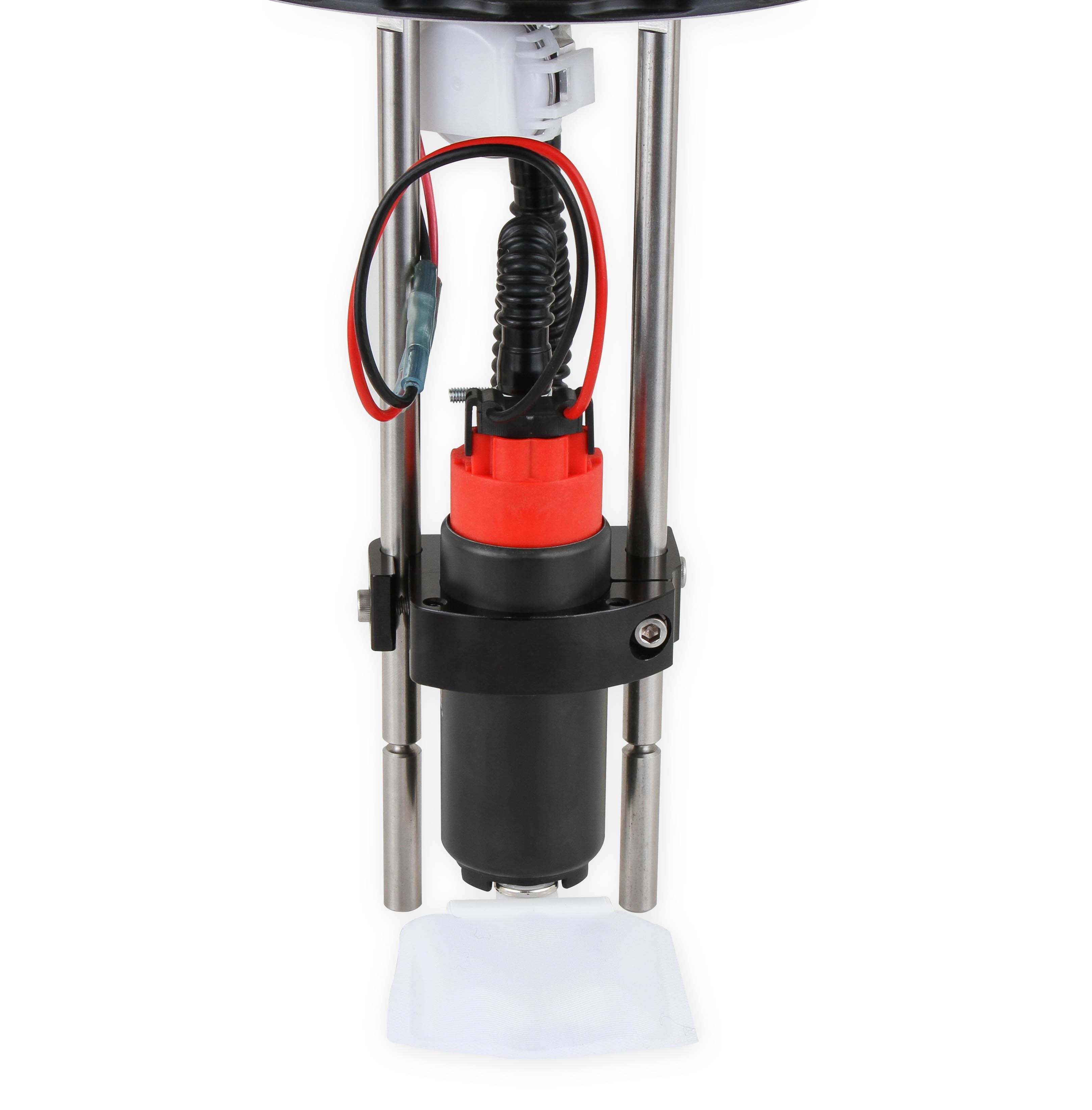

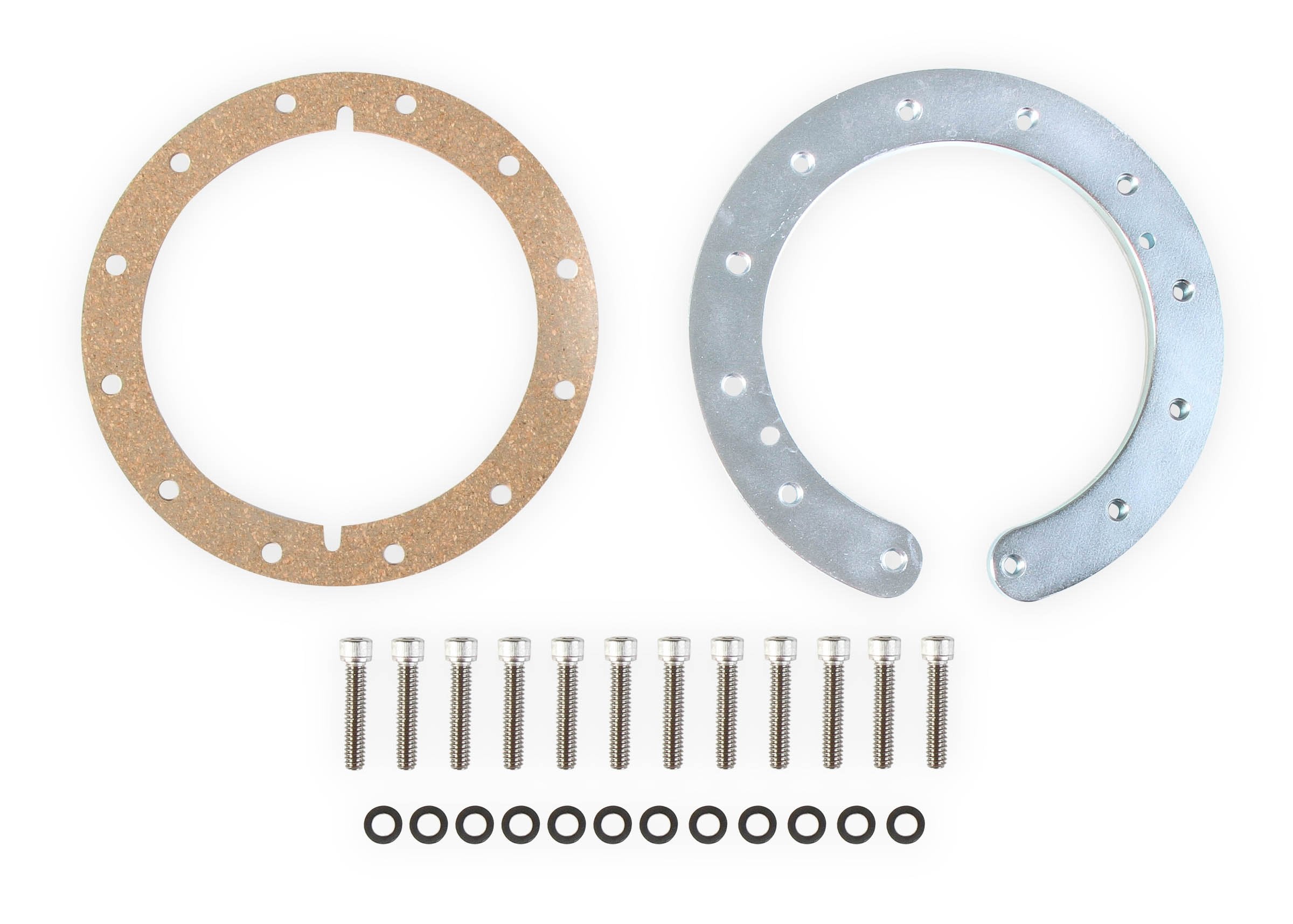

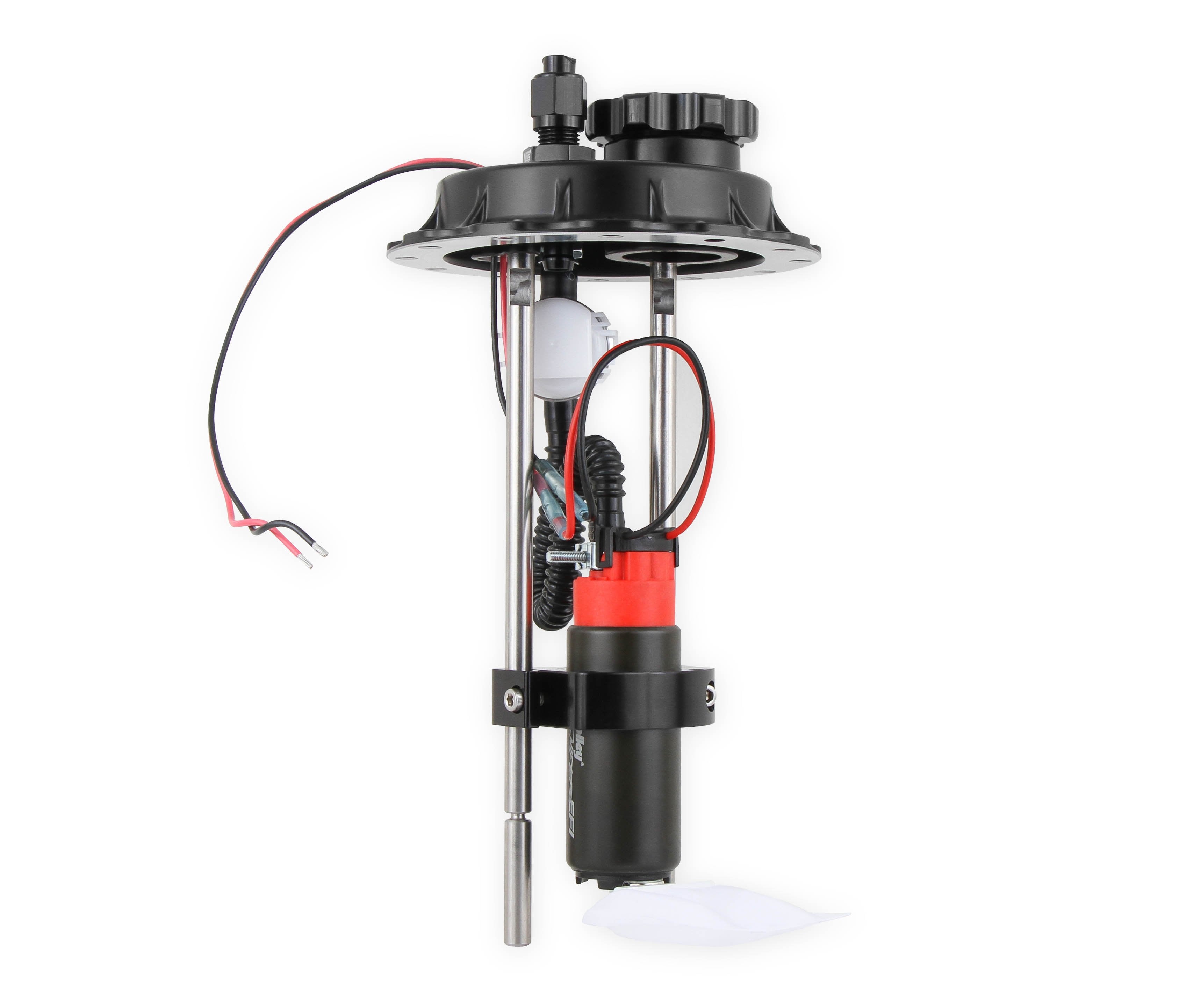

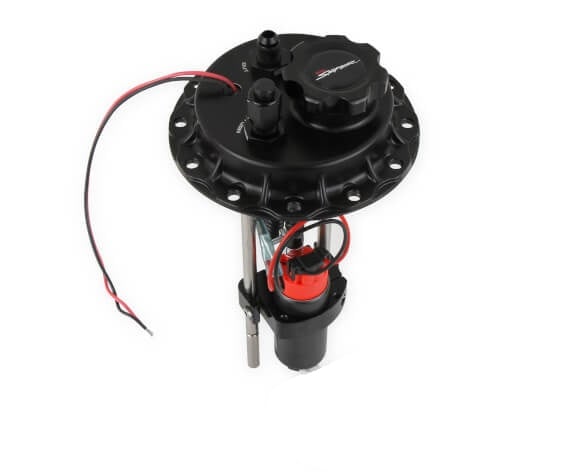

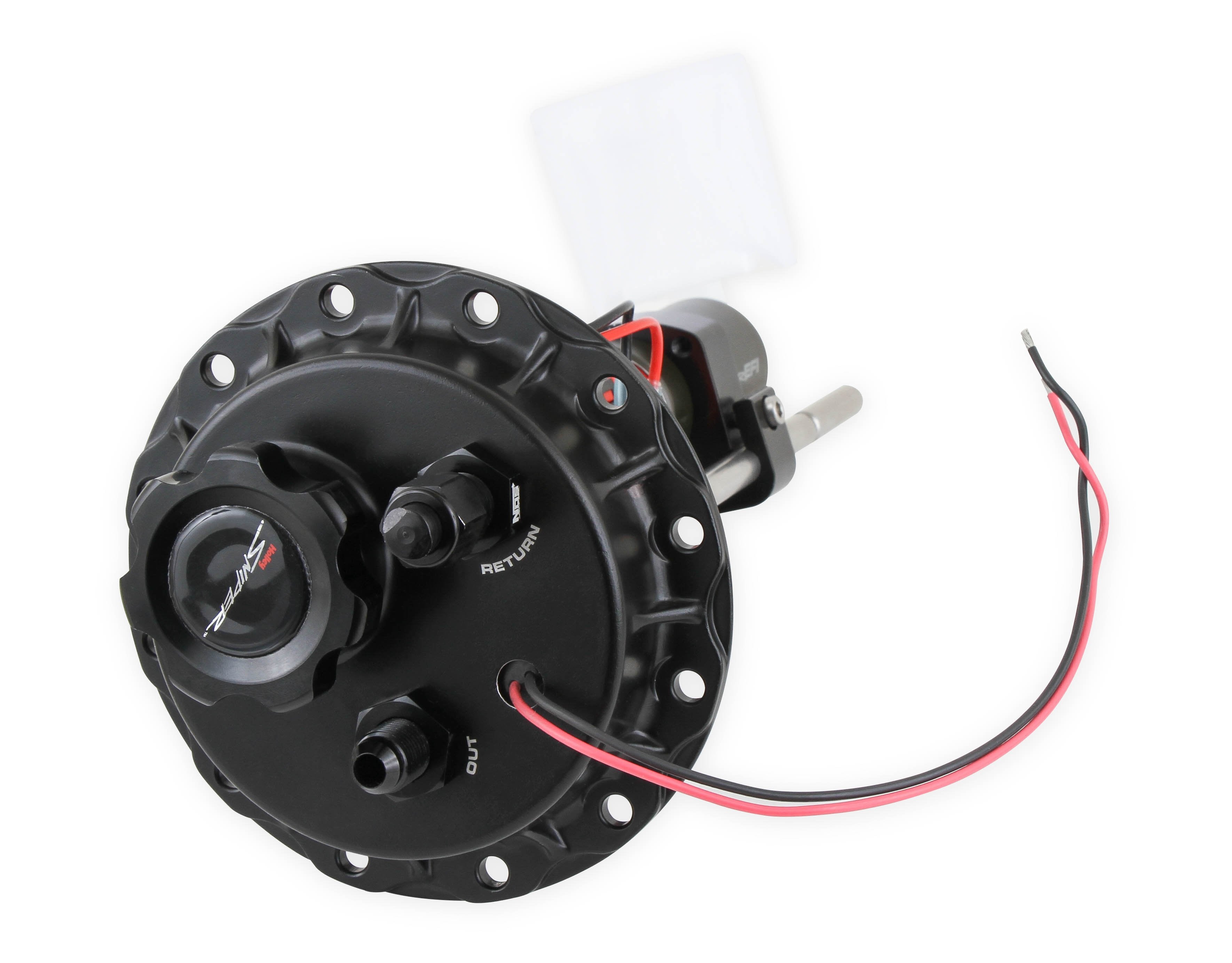

Updating your racing fuel system to EFI is so simple! Sniper is introducing their latest Diecast Fuel Cell EFI Pump Modules. The modules were designed to drop in as a direct replacement for your existing 12 bolt flange fuel cell cap assembly. The diecast aluminum top flange includes an 6AN inlet port, a 6AN outlet port, and a fuel filler cap. The fuel pump depth is fully adjustable from 7.5" to 12" deep. The EFI modules are available with single 340 LPH fuel pumps in both return and returnless system designs. The module kits include all the hardware to install into your existing fuel cell. All that you need to add is your fuel line. ***Assembly fits common RJS, Jaz, Summit, Jegs, RCI, Speedmaster and Speedway fuel cells. ***Supports up to 700 EFI or 900 Carb HP (HP Rating @ 60 PSI at 13.5 Volts / 10.4 AMP Draw)

*** EFI rated fuel hose and clamps required when connecting to existing vehicle fuel lines. Bolt pattern is 5.375"

Features:

• Update your fuel cell to EFI the easy way!
• Designed to drop right into your existing 12 bolt flange fuel cell
• Diecast aluminumt top flange housing includes an 6AN inlet and 6AN outlet port and a fuel filler cap
• The pump depth is fully adjustable for fitment in the most popular cell sizes 7.5???-12??? deep.
• The EFI modules are available with single 340 LPH fuel pumps in both return and returnless system designs

Details:

• Application: Universal
• Flange Style: 12 Bolt
• Free Flow GPH: 90
• Free Flow LPH: 340
• Fuel Type: Gasoline
• Inlet Size: 6 AN
• Max PSI: 80
• Outlet Size: 6 AN
• Single or Dual Pump: Single
• Warranty: Limited 90 Day

Links
Instruction Sheet
