Description
Holley Hi-Ram Intake - GM LS3/L92
Oil-Filled - 0-100 PSI - 1/8" NPT Male Thread
Overview
The Holley EFI analog-style gauge is designed specifically for use with EFI systems. The 0-100 psi gauge is Glycerine (oil) filled for added durability in applications where vibration or pulsation is present. The stainless steel case and bezel creates a finished look to complement your fuel system.
Features:
Details:
Links
300-115
Instruction Sheet
Oil-Filled - 0-100 PSI - 1/8" NPT Male Thread
Overview
The Holley EFI analog-style gauge is designed specifically for use with EFI systems. The 0-100 psi gauge is Glycerine (oil) filled for added durability in applications where vibration or pulsation is present. The stainless steel case and bezel creates a finished look to complement your fuel system.
Features:

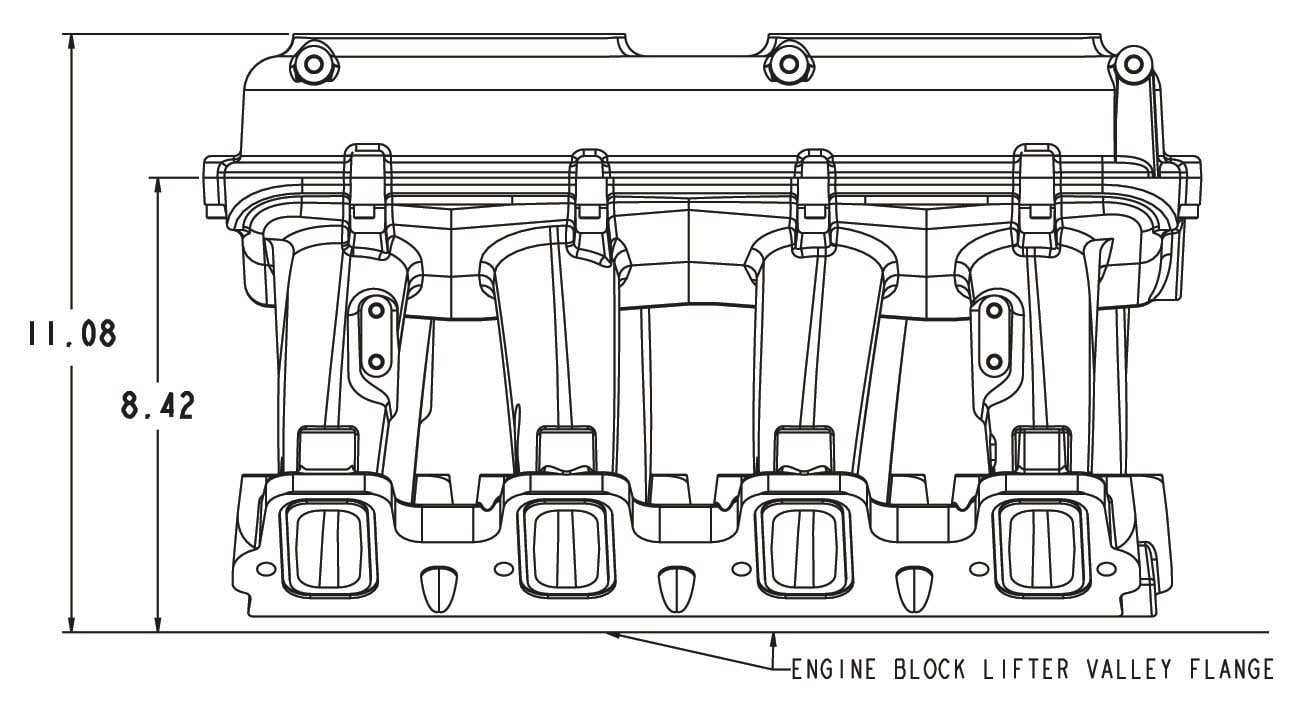

- Height (Carbureted or EFI, 2x4V Top Mount Blank) ???? 11.08??? to the lifter valley cover flange on engine block.
- Base Plenum Top Mounting Flange Height ???? 8.42??? to the lifter valley cover flange on engine block.
- Port Size ???? 2.49??? Height x 1.21??? Wide
- Mounting Flange Gasket Type ???? Standard LS3 Molded O-Ring
- Plenum Top Gasket Type ???? 3/32??? Round O-ring Cord
- Runner Length ???? 6.50???, As-Cast Runner Cross-Sectional Area ???? Tapered 4.25 in?? to 2.77 in??
Details:
- Color: Silver
- Construction: Cast
- Engine: GM LS3/L92
- Finish: Silver
- Flange Style: 4150 Square Bore
- Front Height: 11.08 inch
- Fuel System Type: EFI
- Manifold Type: Hi-Ram
- Rear Height: 11.08 inch
- RPM Power Band: 3500-8000 RPM
- Warranty: Limited 90 Day
Links
300-115
Instruction Sheet
