Lo-Ram Manifold Kit - LS3 Top-Feed Single Injector Satin

Overview
The Holley LS3 Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS3/L92 cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. The Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine applications and the 105 mm throttle body part number 112-581 or similar models. The base intake manifold is designed with a low height to aid the packaging of a plenum mounted air-to-water intercooler in a top-feed configuration. Additional manifold designs include both single and dual injector options. Available with both as-cast satin and black power-coat finishes. High volume fuel rails for eight and sixteen injector configurations. Mounting hardware included with 3/4-16 O-ring ports (8 AN)

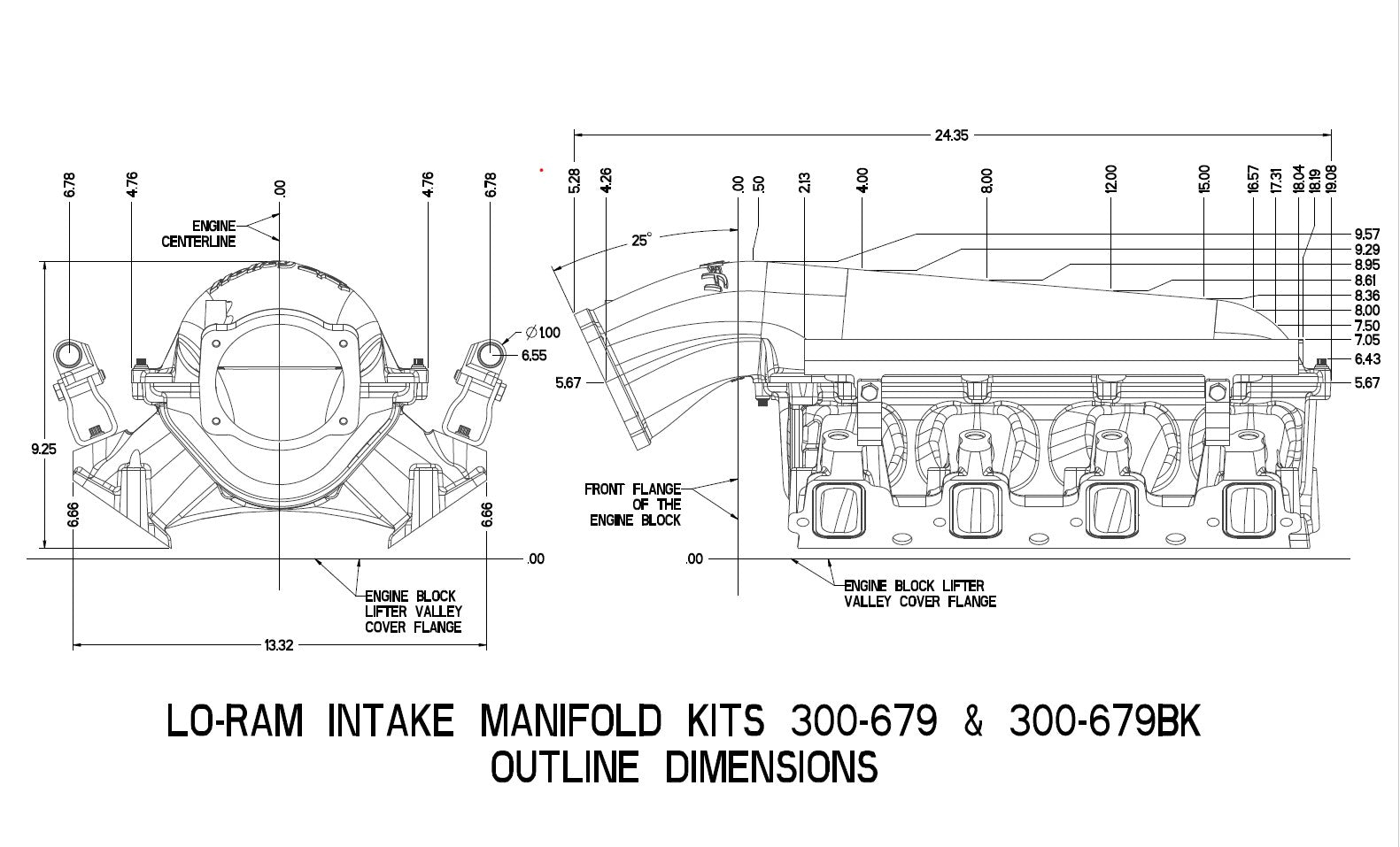

Lo-Ram Base Intake Manifold Plenum Top Mounting Flange Height - 5.67" Total Height: Top-Feed Plenum Configuration w/105mm Long. Mount EFI Plenum Top - 9.25" (without an intercooler installed) Top-Feed Plenum Configuration w/105mm Long. Mount EFI Plenum Top, w/an intercooler installed - 9.25"+ the intercooler thickness

Features:

• Designed for GM LS Gen III and IV engines equipped with GM LS3/L92 cylinder heads
• Designed for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm depending on the application. With forced-induction and the short runner length the engine rpm at which peak power occurs is more likely to
• Modular design allowing the use of the included plenum entry
• Low height to aid the packaging of a plenum mounted air-to-water intercooler in a top-feed configuration or to fit under a stock or mildly modified hood in the front-feed configuration

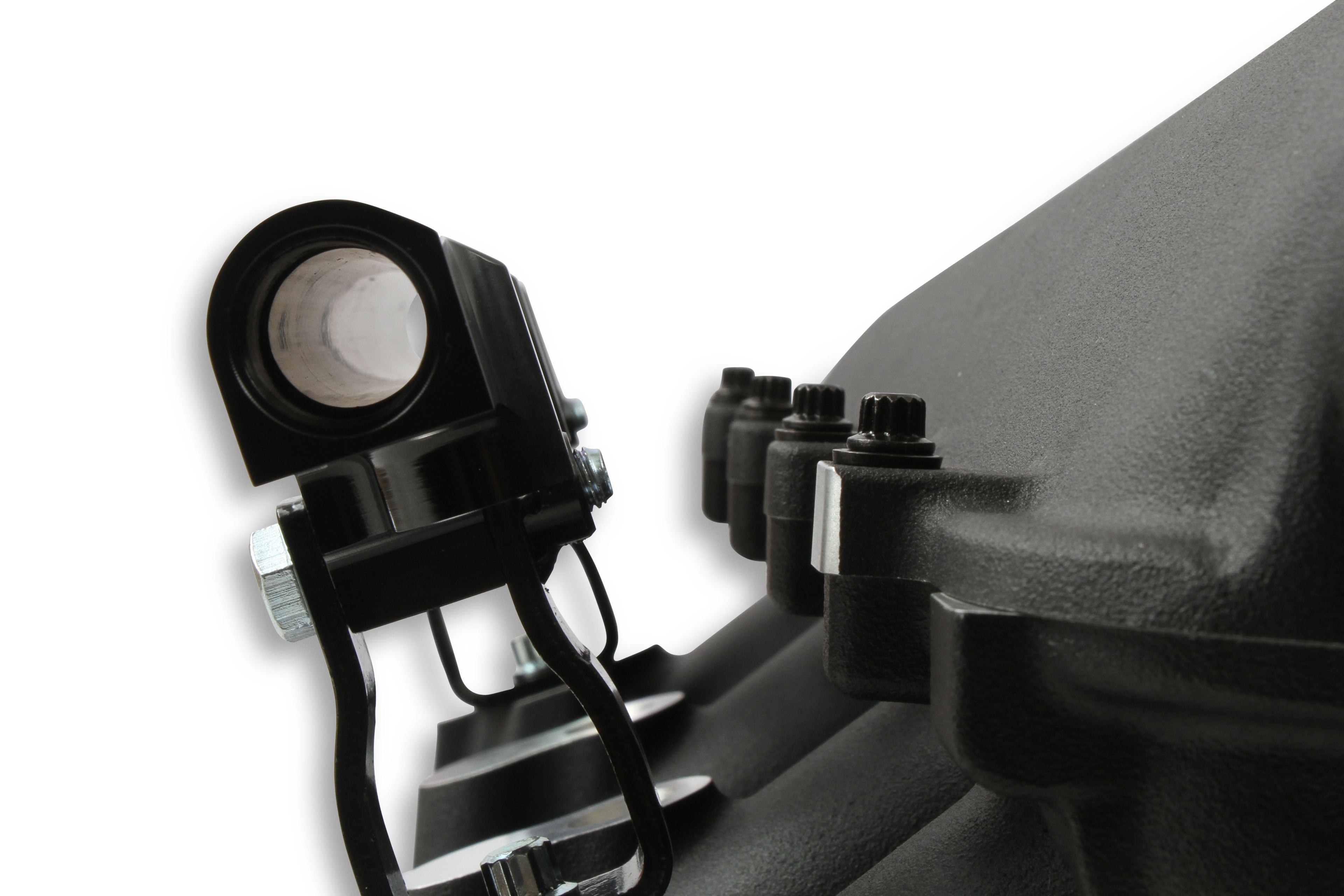

• High volume fuel rails for eight and sixteen injector configurations.

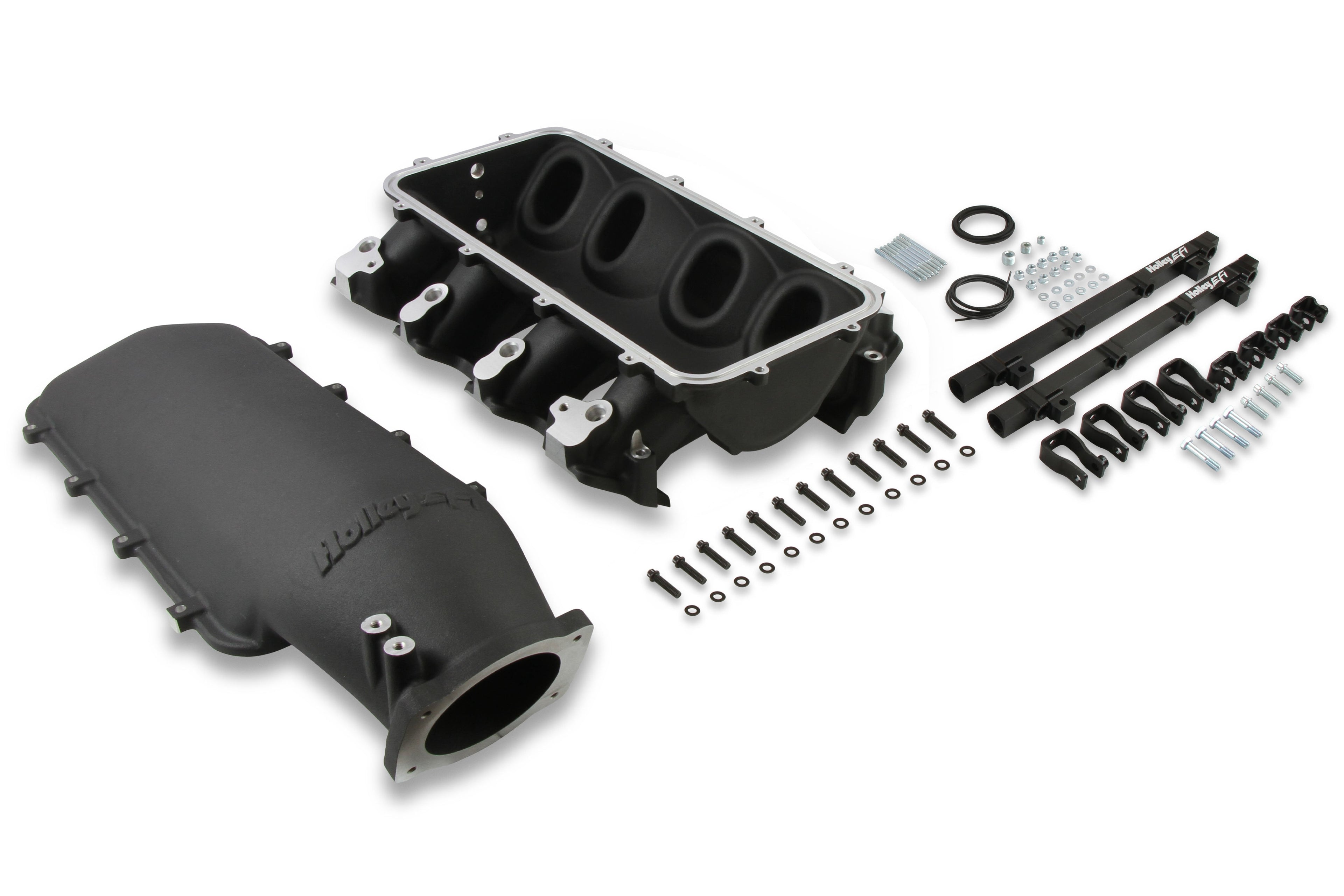

• Mounting hardware included with 3/4-16 O-ring ports (8 AN)and mounting hardware included with 3/4-16 O-ring ports (8 AN)

Details:

• Color: Black
• Construction: Cast
• Engine: GM LS3/L92
• Finish: Black
• Flange Style: EFI
• Front Height: 9.25" without Intercooler
• Fuel System Type: EFI
• Injector Quantity: Single
• Inlet Location: Top
• Manifold Type: Lo-Ram
• Recommended Use: Forced Induction
• RPM Power Band: 3500-8000 RPM
• Warranty: Limited 90 Day
