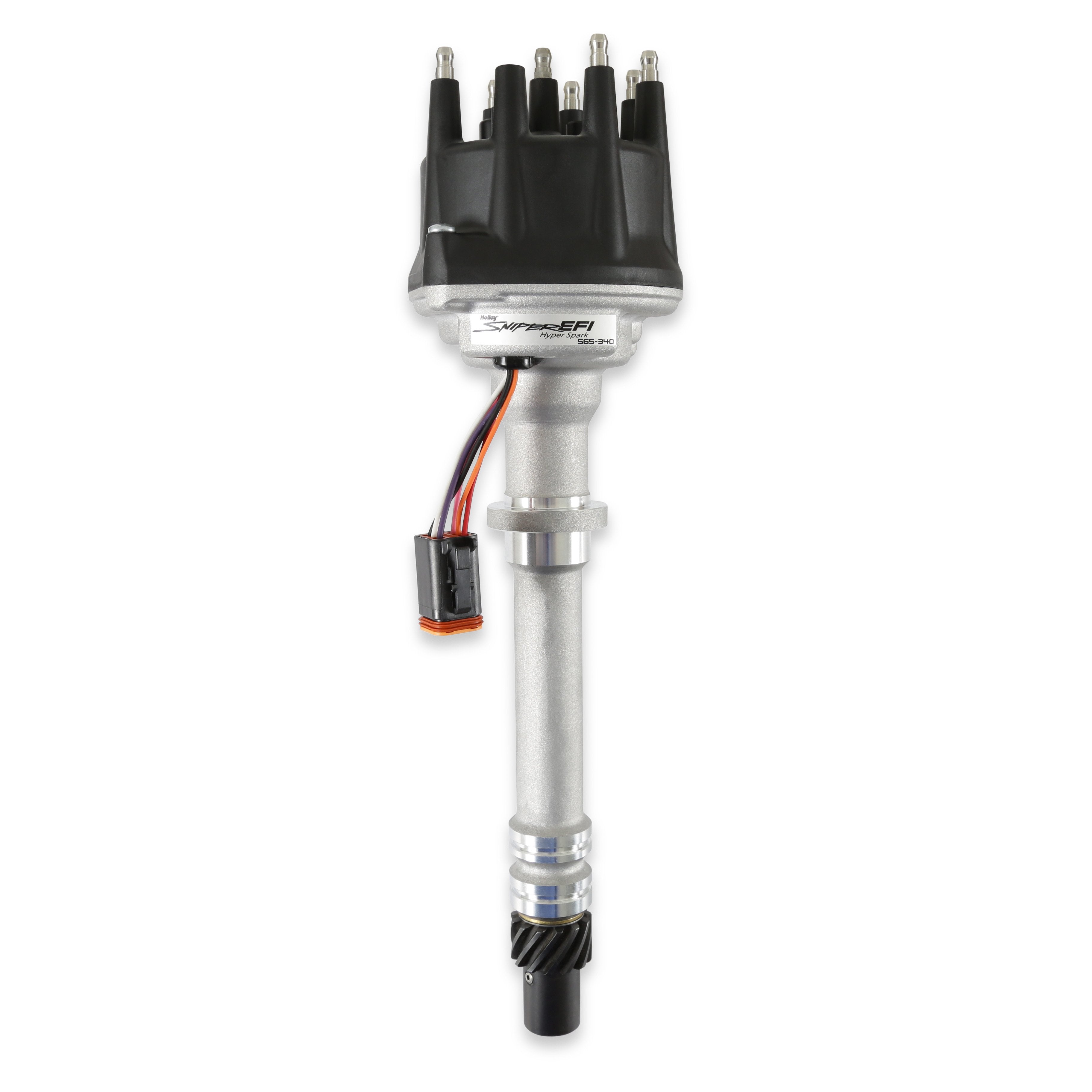

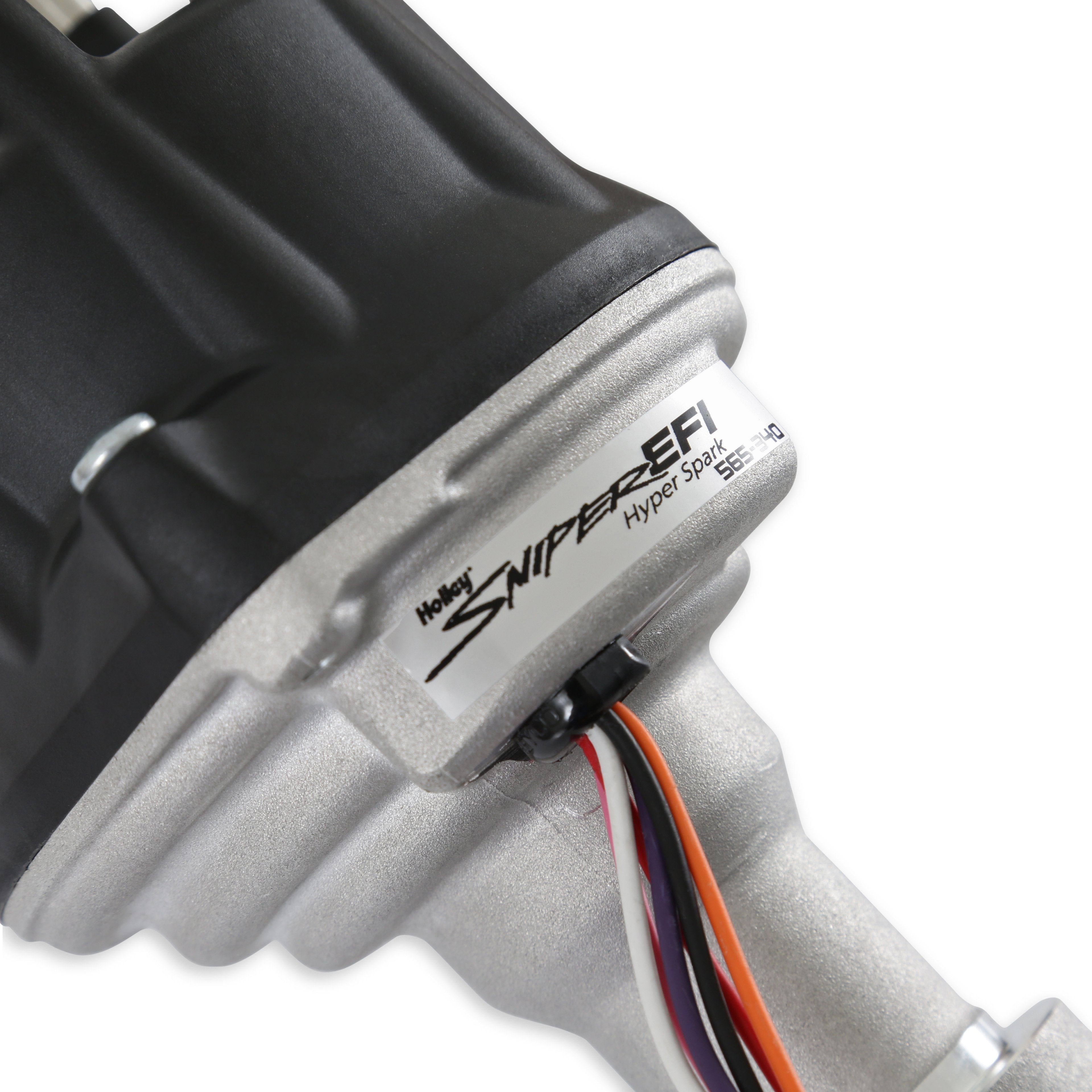

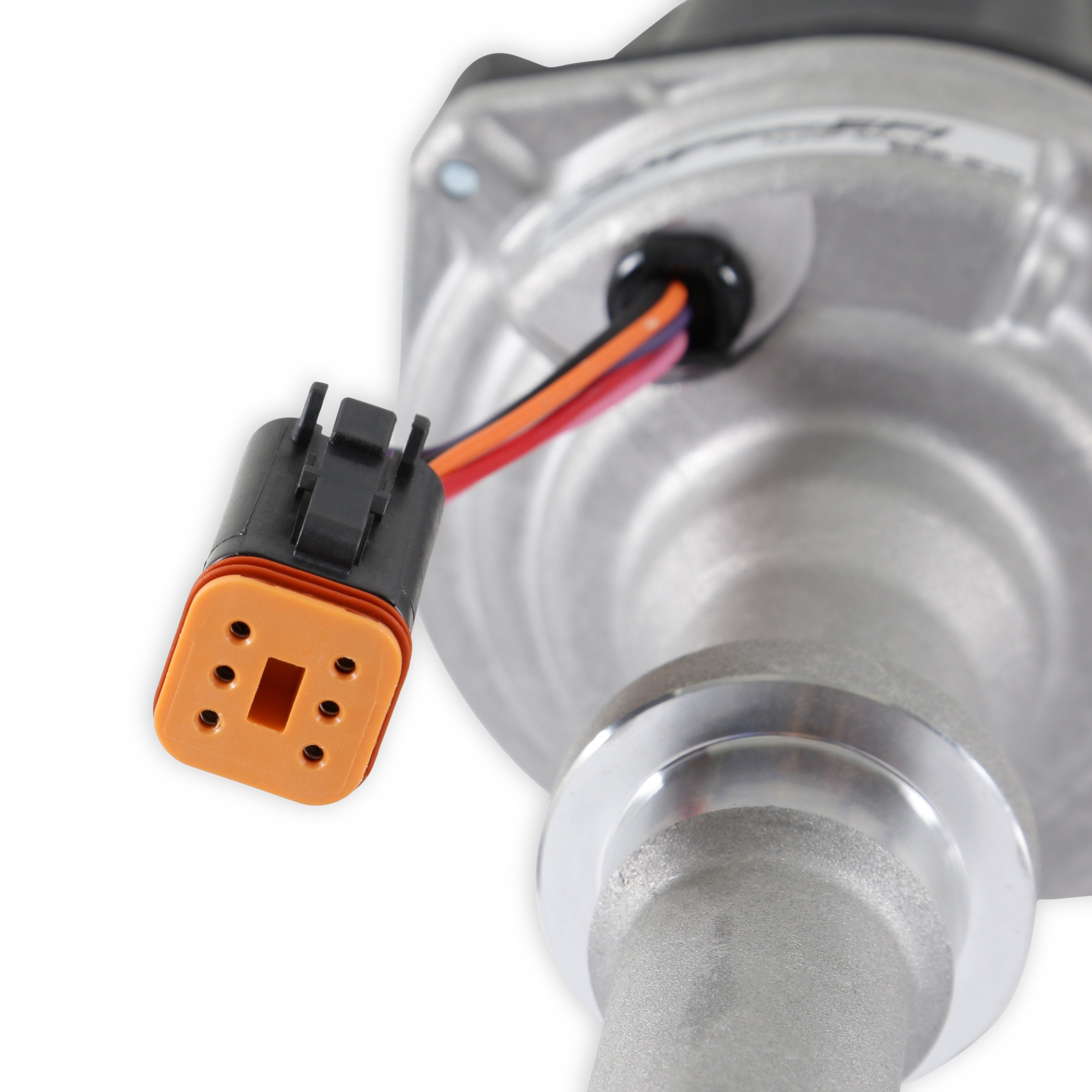

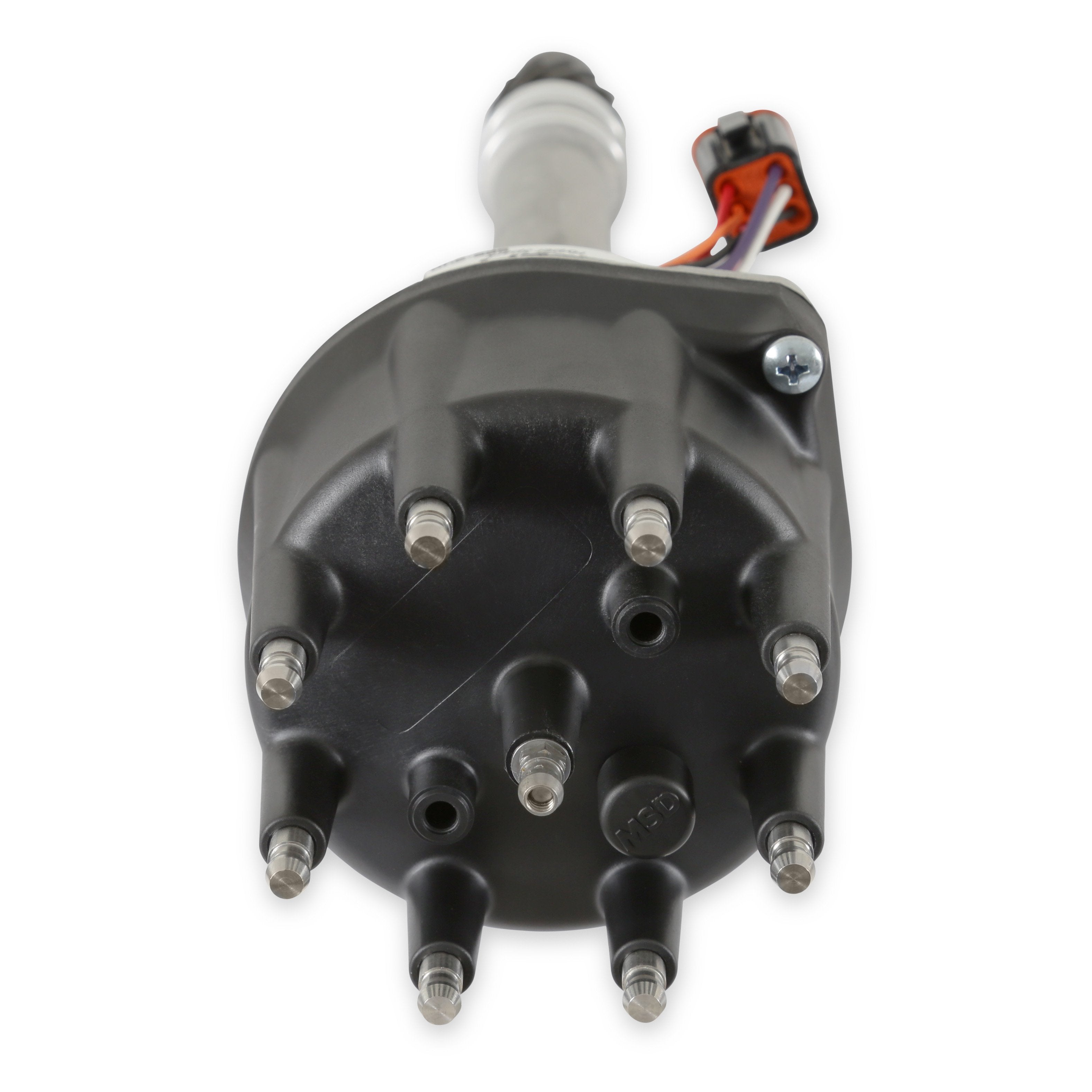

Hyperspark Small Cap Chevy V8 Sb,bb

HYPERSPARK SMALL CAP CHEVY V8 SB,BB

Shiny Billet Housing - Fits 231ci 3.8L V6 Buick engines.

Overview
HyperSpark distributors are plug and play with all Holley Sniper EFI systems, featuring a high-quality billet distributor housing, hall effect crank trigger sensor, and they come included with the foolproof patented clear installation cap. Hyperspark CD Ignition Box (556-152) and Ignition Coil (556-151) sold separately.

Comes with Cast Gear Installed - contact camshaft manufacturer for recommended gear material.

Features:

• Easiest plug-and-play way to add timing control to any Sniper EFI installation
• Designed to work with HyperSpark ignition coil PN 556-152, also compatible with most canister ignition coils using the supplied ring terminals
• Built-in ignition coil driver, safely provides enough spark energy for applications up to 450 hp

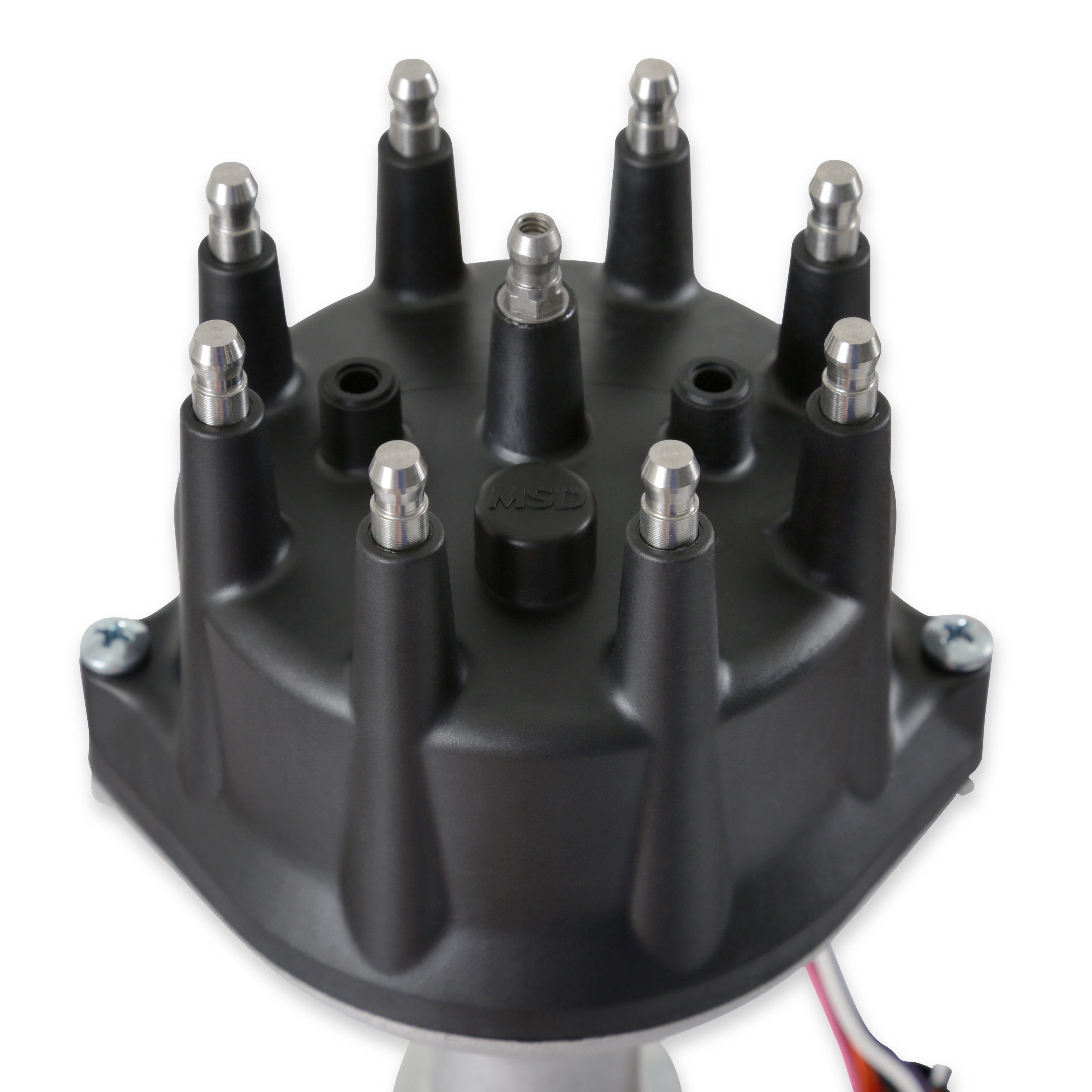

• Patented clear installation cap eliminates any confusion while installing the distributor
• Cast aluminum distributor housing looks right at home in nearly every engine bay

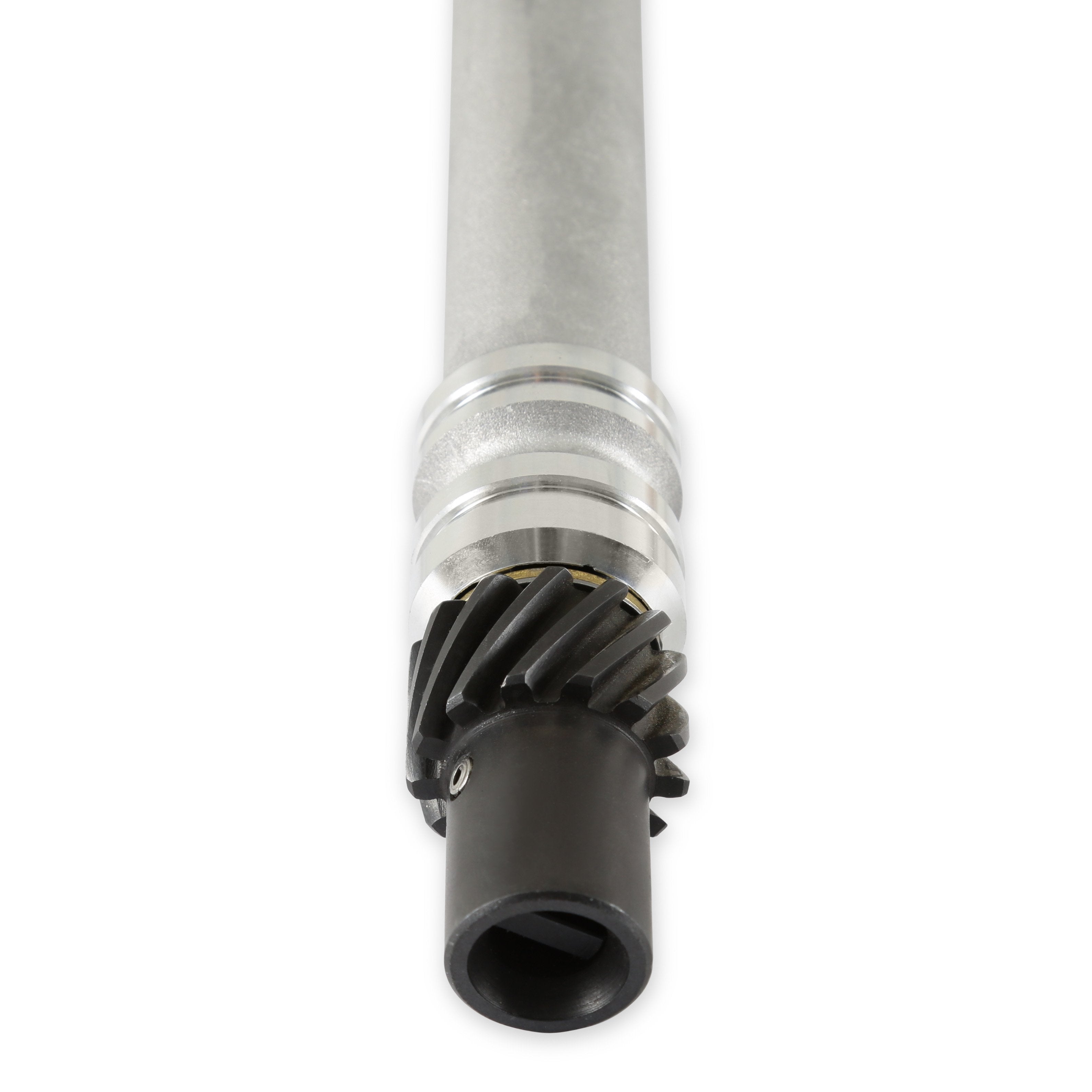

• Comes with cast gear installed - contact camshaft manufacturer for recommended gear material
• 565-341S ???? comes with steel gear for SBF applications with an aftermarket camshaft
• Precision shutter wheel provides the ECU a clean rpm signal via a single Hall Effect sensor, ensuring accurate timing even at high engine rpm
• Shutter wheel design allows for a timed sequential??? fueling strategy with Terminator X, HP, and Dominator ECU??????s
• Includes wire retainer for a clean installation

Details:

• Color: Silver and Black

Links
Instruction Sheet
