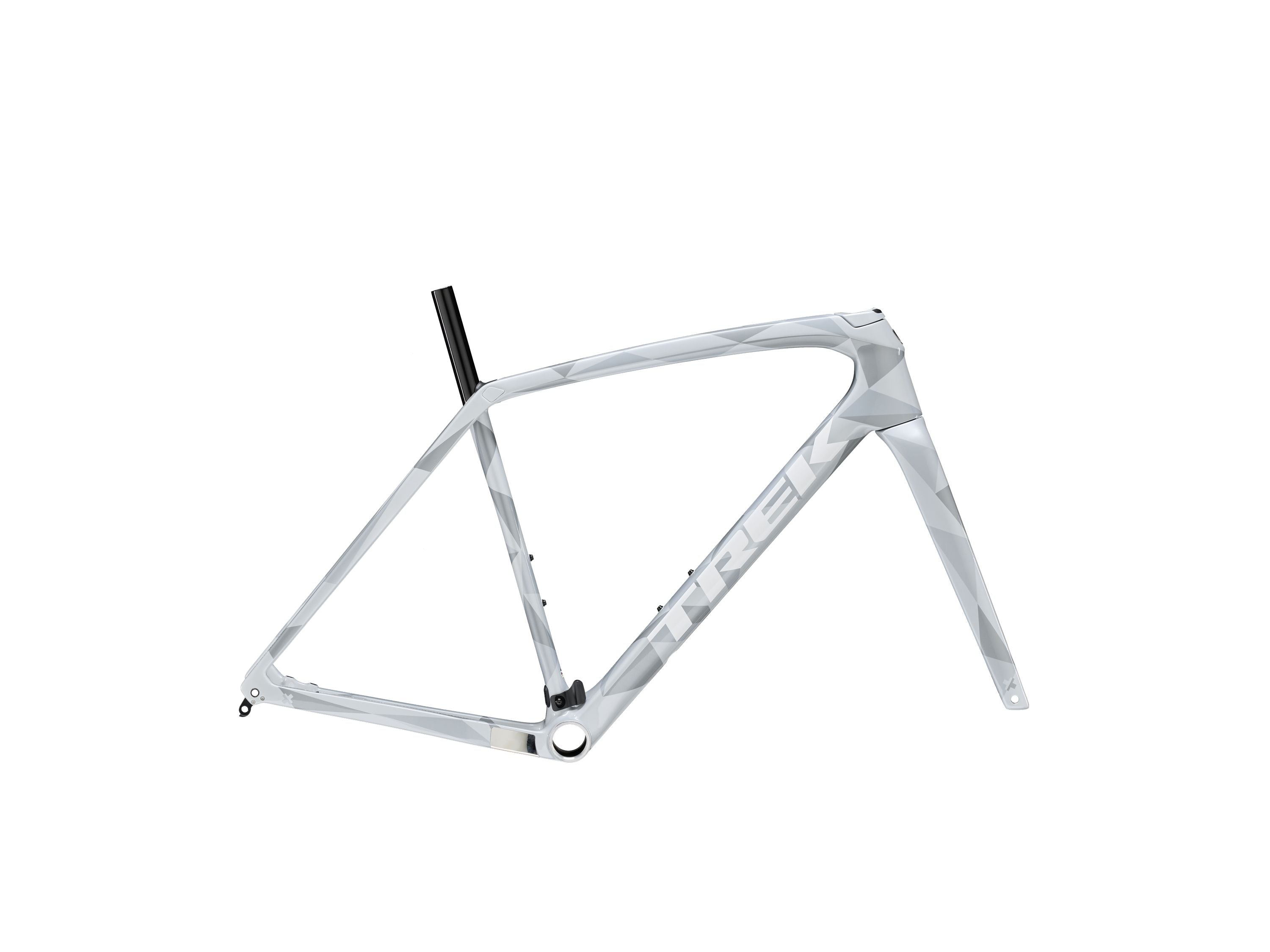

Trek Boone Disc Frameset

Ready to build your dream 'cross bike? Boone Disc frameset is built with ultralight 600 Series OCLV Carbon. It features a cyclocross-specific geometry, Rear IsoSpeed to smooth rough courses, and front and rear 12mm thru axle dropouts for better stiffness and handling.

• This bike was designed with input from cyclocross royalty, so you can trust it to handle everything from hurdles to sand pits
• Carbon rules on the cross course — it's lighter, more forgiving, and more efficient than aluminum
• Rear IsoSpeed cuts down on the fatiguing impacts of rough courses and increases compliance, helping you ride stronger for longer
• Boone's cross-specific geometry and tube shapes make shouldering easy so you can dominate all aspects of a race, including run-ups
• Seat mast cap (available in two lengths/two offsets) sold separately

Smooth is fast

IsoSpeed takes the edge off body-beating course bumps and gravel chatter so you can stay stronger longer, without giving up any pedaling efficiency.

Cross racing tech

Our exclusive technologies give you and our pro racers the race-ready details will keep you out front: Ultra stable and compliant IsoSpeed fork. Smarter cable routing. Better shoulderability. Rugged 3S chain keeper.

Skewer Front	Bontrager Switch thru axle
Skewer Rear	Bontrager Switch thru axle, removable lever

Geometry Chart

B B Drop	7
Chainstay Length	42.5
Eff Top Tube	51.8
Frame Reach	37.5
Frame Size Number	49 cm
Frame Stack	53.4
Head Angle	71.0°
Head Tube Length	11
Offset	4.5
Saddle Rail Height Max Short	64.5
Saddle Rail Height Max Tall	67.5
Saddle Rail Height Min Short	58.5
Saddle Rail Height Min Tall	61.5
Seat Tube	47.6
Seat Tube Angle	75.0°
Standover	74.7
Trail	7.4
Wheelbase	100.1
Wheel Size	700c
